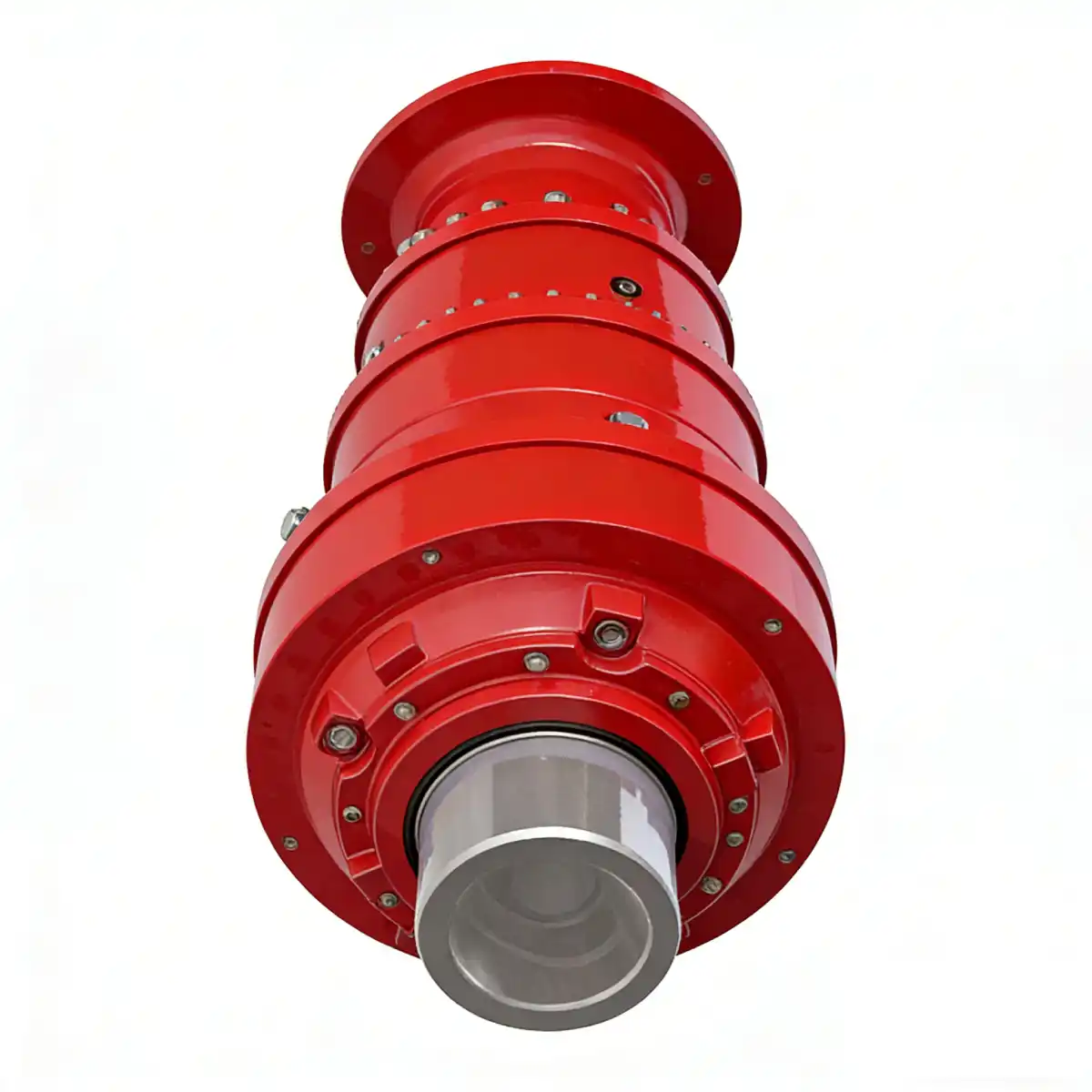

S Series Planetary Gearbox 34,000–2,170,000 Nm | OEM Replacement

At the same torque rating, the S series planetary architecture reduces housing volume and mass by 40–60% versus a conventional spiral gearbox. This reduces structural load on machine frames and simplifies installation.

Every frame size in the range is individually optimised for torque distribution — not simply scaled up from a single design. This means each size delivers its rated 10,000-hour torque without oversizing the unit.

The modular design builds customised gearbox configurations from standard components — keeping lead times and unit costs predictable even on non-standard specifications. Adapter flanges and couplings are available for most electric and hydraulic motors.

Gear design complies with ISO 6336. The series carries DNV type approval and ABS Product Design Assessment (PDA). Additional certifications from other institutions can be obtained based on project-specific requirements.

All S series units can be equipped with a negative (spring-applied, hydraulically released) multi-disc parking brake — providing fail-safe load holding for crane, winch, and marine applications where power-off braking is a safety requirement.

Every unit undergoes a no-load run-in followed by a full rated-torque bench test before shipment. Signed test report included with every order. Units that do not pass the test are not shipped.

Anchor windlass drives, mooring winch drives, deck crane slewing drives, and thruster gearboxes where DNV type approval is mandatory. The S series carries DNV and ABS PDA certification — reducing project documentation burden for ship equipment procurement.

Tower crane hoist drives, luffing winch drives, and slewing ring drives. The negative multi-disc brake option provides fail-safe load holding when power is lost — a standard requirement for crane duty classifications FEM M5 and above.

Rope drum winches, conveyor head drives, and large bucket wheel drives. The S20000 frame delivers 2,170,000 Nm rated torque — covering the heaviest mining winch and conveyor drive requirements in a housing 40–60% smaller than a spiral equivalent.

Slow-speed, high-torque drives for clarifier rake arms, thickener scrapers, and large sludge collection systems. The modular architecture allows exact torque-to-speed ratio specification without oversizing.

Steel mill roller table drives, rotary kiln drives, large mixer drives, and press machine outputs. The S series ISO 6336 gear design basis enables third-party certification for industries with mandatory inspection requirements.

"We replaced an S1800 Brevini unit on our offshore mooring winch. Sent the nameplate data on Tuesday — they confirmed the S series equivalent and provided dimensional drawings by Thursday. Unit arrived with DNV cert documentation already included. Bolted straight on, 900 hours in service with zero issues. Documentation audit sailed through the port inspection."

"I told my project manager we were replacing a Brevini S3500 with a third-party unit. The look on his face suggested I had proposed building the crane out of driftwood. Sent him the DNV cert and the ISO 6336 gear design docs. He read them. Looked up. Said nothing. That silence cost me zero dollars and saved my company $38,000. The gearbox is now at 1,400 hours. My manager is still silent."

Dedicated winch drive planetary gearboxes with integrated drum flange mount and negative parking brake. Output torque 1,000–280,000 Nm. Hydraulic and electric motor input. FEM M5-rated. Compatible with the same adapter flanges as the S series.

Hydraulic motors dimensioned for direct mounting on S series input flanges. Ordering motor and gearbox together from one supplier eliminates flange interface mismatches — the most common cause of assembly delays on site.

Where the S series application requires 90° output, the EP300R / NB300R right angle planetary gearbox provides the same torque density with a spiral bevel output stage. Covers 1,000–500,000 Nm in 16 frame sizes.
