Right Angle Planetary Gearboxes

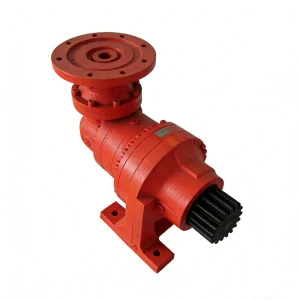

Our right angle planetary gearbox series delivers output torque at exactly 90° to the input shaft — combining a multi-stage planetary reducer with a spiral bevel output stage. Two series available: EP300R (16 frame sizes up to 500,000 Nm) and NB300R (12 frame sizes up to 450,000 Nm). Every unit 100% load-tested before shipment.
What Is a Right Angle Planetary Gearbox
— and When Do You Need One?

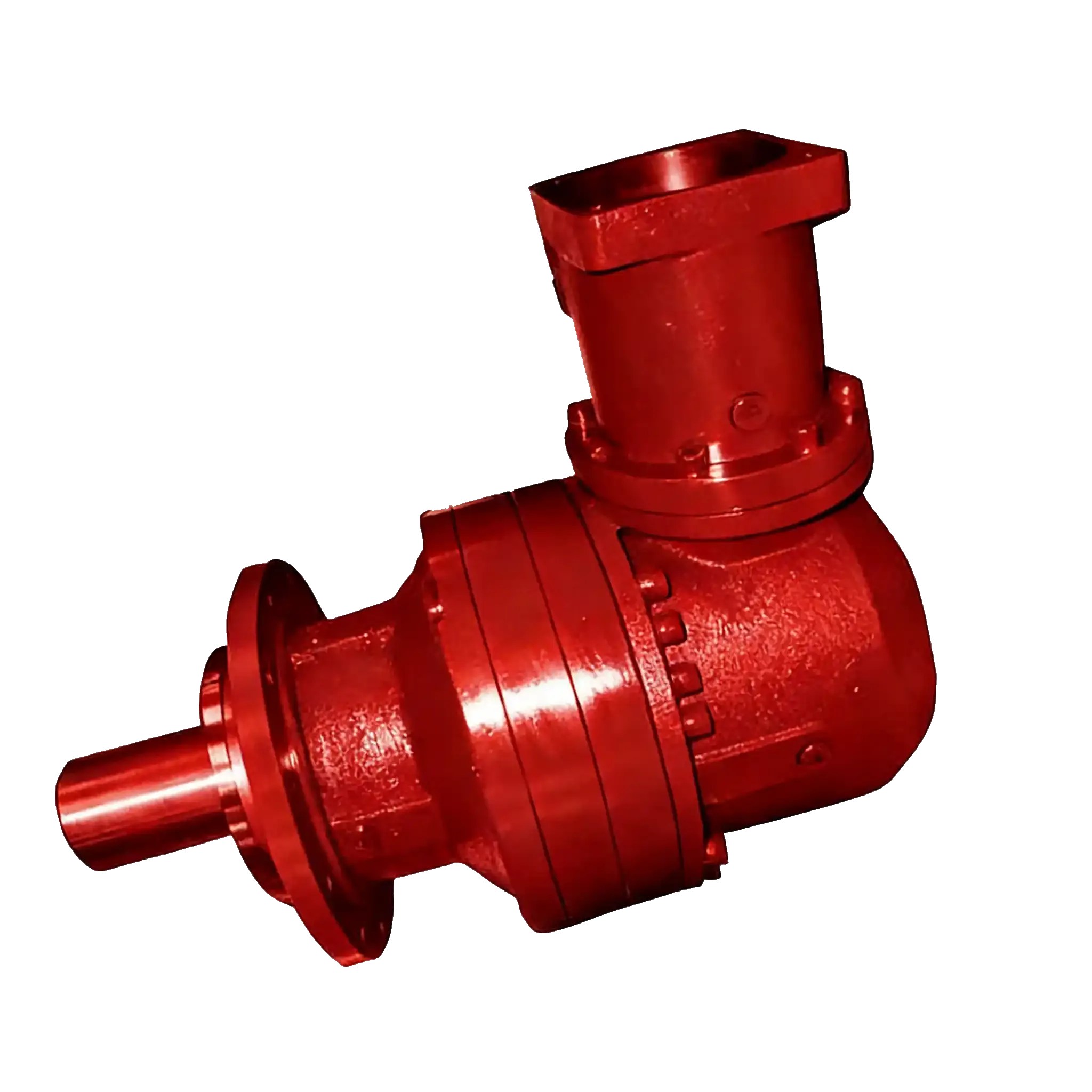

A right angle planetary gearbox adds a spiral bevel gear stage at the output of a standard multi-stage planetary reducer, redirecting output torque to exactly 90° relative to the input shaft. This is the defining difference from an inline (coaxial) planetary gearbox — and the reason engineers specify this type when a machine’s geometry makes in-line shaft arrangement impossible.
The spiral bevel output stage matters: progressive tooth contact reduces noise and vibration versus straight-cut bevel designs at equivalent torque ratings — an important consideration for equipment installed in occupied structures, greenhouses, or noise-restricted industrial environments.
When to choose right angle
When inline is sufficient
Replacing an existing unit
How to Select the Right Right Angle Planetary Gearbox
— 3-Step Process
Provide these three inputs and we’ll confirm the correct series, frame, and variant within 24 hours.
Define Output Torque & Ratio
Specify Motor Interface & Output Shaft
Confirm Brake & Mounting Requirements
Replacement Brands
Our planetary gearboxes are engineered to match the key specifications, dimensions, and performance characteristics of leading international brands, enabling seamless one-to-one replacement.
All mounting interfaces and overall dimensions are developed in strict compliance with the standards of major Italian and American manufacturers. As a result, our gearboxes offer full interchangeability in both performance and connection compatibility with Brevini ED, ET, EQ, EM, EC, and EL series, as well as Bonfiglioli 300 series and Dinamicoil RE and RA series. This makes them a reliable and cost-effective alternative to original Italian products.
Ever-Power does not sell products of this brand; the use of this brand is merely for product selection convenience and does not involve any infringement.
Bonfiglioli
Right angle planetary units. EP300R / NB300R replaces equivalent Bonfiglioli series with identical flange and shaft dimensions.
Brevini Riduttori
BM / BF series right angle drives. Direct dimensional match across standard frame sizes and common ratio selections.
Bosch Rexroth
Right angle planetary reducer equivalents. Confirm frame designation from nameplate for exact cross-reference.
Comer Industries
Agricultural and industrial right angle gear drives. Matches on flange pattern and output shaft configuration.
Reggiana Riduttori
Right angle series replacement. Send nameplate data for direct frame-size confirmation.
Rossi
Modular bevel-planetary series. EP300R matches on output mounting and shaft options across the common torque range.
Zollern
Right angle planetary reducers for construction and industrial equipment. Confirm ratio and torque from nameplate for exact match.
Other Brands?
Send any brand’s nameplate data. We cross-reference by torque, ratio, and mounting dimensions — not just brand name.
Replacement of Bonfiglioli
300L Series
| 300L 1 | 300L 2 | 300L 3 | 300L 4 |
| 301L 1 | 301L 2 | 301L 3 | 301L 4 |
| 303L 1 | 303L 2 | 303L 3 | 303L 4 |
| 305L 1 | 305L 2 | 305L 3 | 305L 4 |
| 306L 1 | 306L 2 | 306L 3 | 306L 4 |

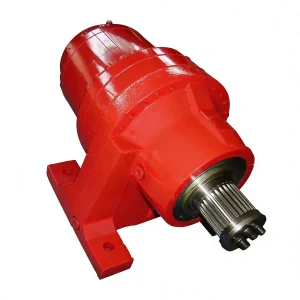

| 307L 1 | 307L 2 | 307L 3 | 307L 4 |
| 309L 1 | 309L 2 | 309L 3 | 309L 4 |
| 310L 1 | 310L 2 | 310L 3 | 310L 4 |
| 311L 1 | 311L 2 | 311L 3 | 311L 4 |
| 313L 1 | 313L 2 | 313L 3 | 313L 4 |
| 315L 1 | 315L 2 | 315L 3 | 315L 4 |
| 316L 1 | 316L 2 | 316L 3 | 316L 4 |
| 317L 1 | 317L 2 | 317L 3 | 317L 4 |
| 318L 1 | 318L 2 | 318L 3 | 318L 4 |
| 319L 1 | 319L 2 | 319L 3 | 319L 4 |
| 321L 1 | 321L 2 | 321L 3 | 321L 4 |
300R Series
| 300R2 | 300R3 | 300R4 |
| 301R2 | 301R3 | 301R4 |
| 303R2 | 303R3 | 303R4 |
| 305R2 | 305R3 | 305R4 |
| 306R2 | 306R3 | 306R4 |
| 307R2 | 307R3 | 307R4 |
| 309R2 | 309R3 | 309R4 |
| 310R2 | 310R3 | 310R4 |
| 311R2 | 311R3 | 311R4 |
| 313R2 | 313R3 | 313R4 |
| 315R3 | 315R4 | |
| 316R3 | 316R4 | |
| 317R3 | 317R4 | |
| 318R4 | ||
| 319R4 | ||
| 321R4 |
Why OEM Buyers Source
Right Angle Planetary Gearboxes From Us
| What We Offer | The Specifics |
|---|---|
| 100% Load-Tested | No-load run-in followed by full rated-torque bench test on every unit. Signed test report ships with every order — no exceptions. |
| OEM Dimensional Fit | Mounting flange, shaft dimensions, and bolt patterns match the original Bonfiglioli / Brevini / Rexroth unit. Average swap time: 4–6 hours with standard tooling. |
| No MOQ | Single-unit emergency orders accepted on the same lead time as bulk. Volume pricing available — contact us with quantity. |
| 4–7 Day In-Stock Lead Time | In-stock standard units: 4–7 business days. Custom ratio or brake option: 10–35 days depending on specification. Air freight for urgent orders. |
| 12-Month Warranty | 12 months from shipment date. Defective units replaced. Report with supporting data and photos — we handle it directly. |
| FISO 9001:2015 | Certified quality system covering CNC precision machining, DIN/AGMA gear hobbing, heat treatment, and assembly. CE and RoHS documentation available. |
| Global Shipping | Sea (LCL/FCL), air, DHL/FedEx/UPS. EXW, FOB, CFR, CIF from Jiangmen Port. Ships to Canada, Australia, USA, Europe and 50+ countries. |
Frequently Asked Questions — Right Angle Planetary Gearbox
What is the price difference between a right angle and inline planetary gearbox at the same torque?
A right angle planetary gearbox typically costs 8–15% more than an equivalent inline unit at the same torque rating, due to the additional spiral bevel gear stage. In most applications, this premium is offset by the elimination of costly right-angle adaptor brackets or custom shaft couplings. Contact us for a direct price comparison for your specific torque and ratio requirement.
What is the efficiency loss through the bevel stage in a right angle planetary gearbox?
The spiral bevel output stage adds approximately 2–3% efficiency loss per pass. For a 3-stage planetary unit with a bevel output, total efficiency is typically 94–96% — versus 97–98% for a comparable inline planetary unit. For most industrial and mobile equipment applications, this difference is negligible relative to the layout flexibility gained.
Can I order a right angle planetary gearbox replacement for Bonfiglioli without sending drawings?
Yes — in most cases the nameplate data is sufficient. Send the brand name, series code, gear ratio, output torque or frame size designator, and input/output configuration. We cross-reference against our compatibility database and confirm the matching EP300R or NB300R variant within 4 business hours. For unusual or non-standard configurations, a dimensional drawing of the critical interfaces may be requested.
Are non-standard gear ratios available in the EP300R right angle gearbox?
Non-standard ratios within the production range (6.9:1 to 9,000:1) are available to order with a 10–35 day lead time. Specify your required output RPM and input motor speed — we’ll calculate the exact ratio and confirm the nearest standard option or advise on a non-standard production run depending on quantity and urgency.
What documents are included with a right angle planetary gearbox shipment?
Every order includes: signed load test report, commercial invoice, packing list, and bill of lading. Certificate of origin, CE declaration, and ISO 9001:2015 conformance certificate are available on request at no additional charge. All documentation is provided in English.
Get In Touch
Source Your Right Angle Planetary Gearbox — Quote in 24 Hours
Tell us your torque requirement, gear ratio, motor interface, and output shaft type — or send the nameplate data from your existing unit. We’ll confirm the correct EP300R or NB300R frame, price, and lead time within 24 business hours. No minimum order quantity. Ships to Canada, Australia, USA, Europe, and 50+ countries.
24-hour quotation guarantee on all enquiries
MOQ 1 unit — no minimum order quantity requiredCE & ISO documentation included with every shipmentOEM / private labelling available on all 10 types
