Product Description

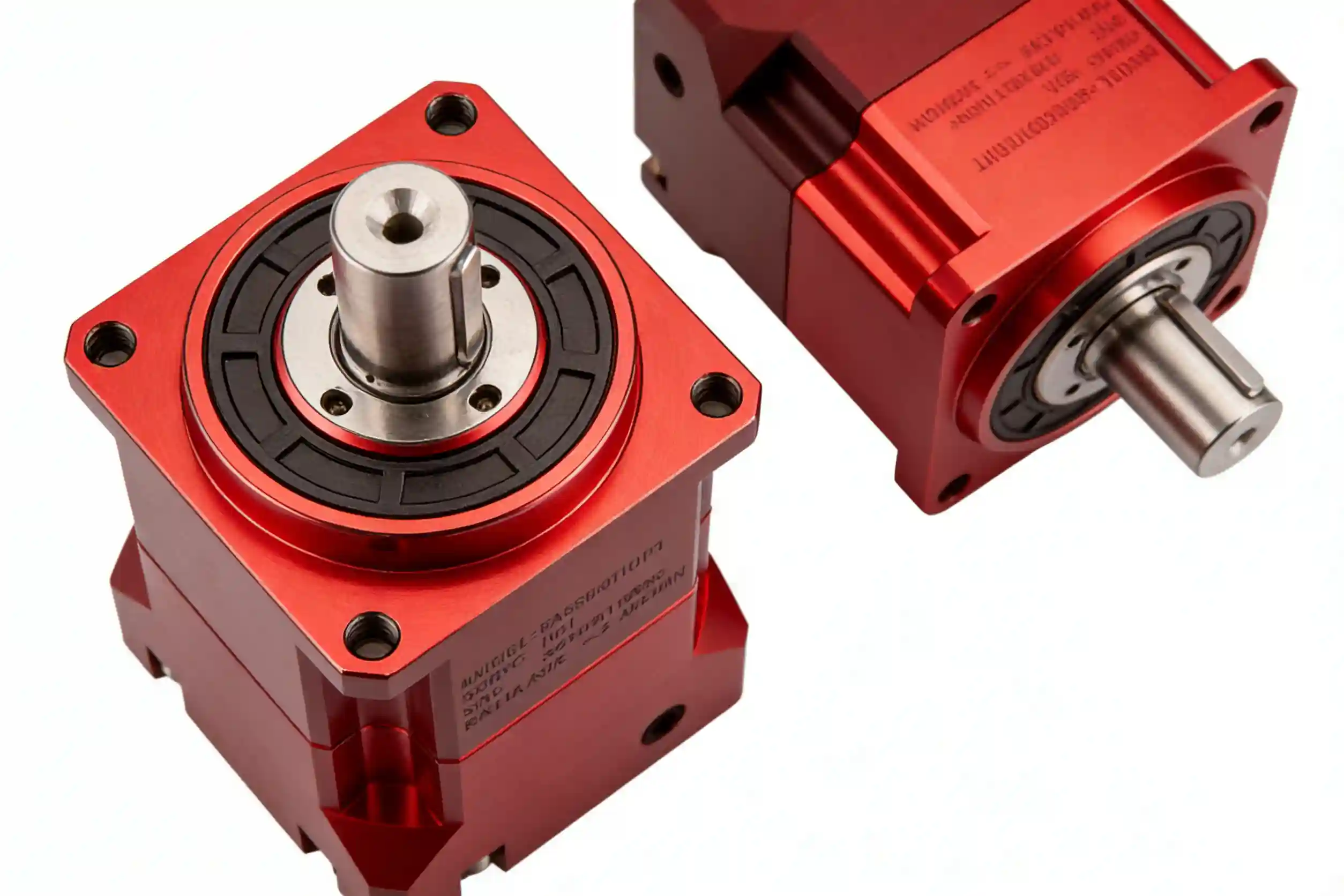

High Torque Low Noise Ratio 3-100 Motor Planetary Gearboxes (PRN80-L2)
Planetary gearbox is a kind of reducer with wide versatility. The inner gear adopts low carbon alloy steel carburizing quenching and grinding or nitriding process. Planetary gearbox has the characteristics of small structure size, large output torque, high speed ratio, high efficiency, safe and reliable performance, etc. The inner gear of the planetary gearbox can be divided into spur gear and helical gear. Customers can choose the right precision reducer according to the needs of the application.
Product Description
1.Output threaded connection, standard installation,universal usage.
2.Single cantilever structure.simple design,economic price
3.Working steady. Low noise.
4.Round flange output,threaded reverse connection,standardized size.
5.Keyway can be opened in the force shaft.
6.The output connection specifications are complete and there are many choices
7.Backlash 8-16 arcmin. Can suit most occasion.
Product Parameters
| Specifications | PRN60 | PRN80 | PRN90 | PRN120 | PRN160 | |||
| Technal Parameters | ||||||||
| Max. Torque | Nm | 1.5times rated torque | ||||||
| Emergency Stop Torque | Nm | 2.5times rated torque | ||||||
| Max. Radial Load | N | 240 | 400 | 450 | 1240 | 2250 | ||
| Max. Axial Load | N | 220 | 420 | 430 | 1000 | 1500 | ||
| Torsional Rigidity | Nm/arcmin | 1.8 | 4.7 | 4.85 | 11 | 35 | ||
| Max.Input Speed | rpm | 8000 | 6000 | 6000 | 6000 | 4000 | ||
| Rated Input Speed | rpm | 4000 | 3500 | 3500 | 3500 | 3000 | ||
| Noise | dB | ≤58 | ≤60 | ≤60 | ≤65 | ≤70 | ||
| Average Life Time | h | 20000 | ||||||
| Efficiency Of Full Load | % | L1≥96% L2≥94% | ||||||
| Return Backlash | P1 | L1 | arcmin | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 |
| L2 | arcmin | ≤12 | ≤12 | ≤12 | ≤12 | ≤12 | ||
| P2 | L1 | arcmin | ≤16 | ≤16 | ≤16 | ≤16 | ≤16 | |
| L2 | arcmin | ≤20 | ≤20 | ≤20 | ≤20 | ≤20 | ||
| Moment Of Inertia Table | L1 | 3 | Kg*cm2 | 0.46 | 0.77 | 1.73 | 12.78 | 36.72 |
| 4 | Kg*cm2 | 0.46 | 0.77 | 1.73 | 12.78 | 36.72 | ||
| 5 | Kg*cm2 | 0.46 | 0.77 | 1.73 | 12.78 | 36.72 | ||
| 7 | Kg*cm2 | 0.41 | 0.65 | 1.42 | 11.38 | 34.02 | ||
| 10 | Kg*cm2 | 0.41 | 0.65 | 1.42 | 11.38 | 34.02 | ||
| L2 | 12 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | |
| 15 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 16 | Kg*cm2 | 0.72 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 20 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 25 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 28 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 30 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 35 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 40 | Kg*cm2 | 0.44 | 0.72 | 1.49 | 12.18 | 34.24 | ||
| 50 | Kg*cm2 | 0.34 | 0.58 | 1.25 | 11.48 | 34.02 | ||
| 70 | Kg*cm2 | 0.34 | 0.58 | 1.25 | 11.48 | 34.02 | ||
| 100 | Kg*cm2 | 0.34 | 0.58 | 1.25 | 11.48 | 34.02 | ||
| Technical Parameter | Level | Ratio | PRN60 | PRN80 | PRN90 | PRN120 | PRN160 | |
| Rated Torque | L1 | 3 | Nm | 27 | 50 | 96 | 161 | 364 |
| 4 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 5 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 7 | Nm | 34 | 48 | 95 | 170 | 358 | ||
| 10 | Nm | 16 | 22 | 56 | 86 | 210 | ||
| L2 | 12 | Nm | 27 | 50 | 96 | 161 | 364 | |
| 15 | Nm | 27 | 50 | 96 | 161 | 364 | ||
| 16 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 20 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 25 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 28 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 30 | Nm | 27 | 50 | 96 | 161 | 364 | ||
| 35 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 40 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 50 | Nm | 40 | 90 | 122 | 210 | 423 | ||
| 70 | Nm | 34 | 48 | 95 | 170 | 358 | ||
| 100 | Nm | 16 | 22 | 56 | 86 | 210 | ||
| Degree Of Protection | IP65 | |||||||
| Operation Temprature | ºC | – 10ºC to -90ºC | ||||||
| Weight | L1 | kg | 0.95 | 2.27 | 3.06 | 6.93 | 15.5 | |
| L2 | kg | 1.2 | 2.8 | 3.86 | 8.98 | 17 | ||
Company Profile
Packaging & Shipping
1. Lead time: 10-15 days as usual, 30 days in busy season, it will be based on the detailed order quantity;
2. Delivery: DHL/ UPS/ TNT/ EMS/ FEDEX
/* October 22, 2571 15:47:17 */(()=>{function d(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
Considerations for Selecting Planetary Gearboxes for Aerospace and Satellite Applications
Selecting planetary gearboxes for aerospace and satellite applications requires careful consideration due to the unique demands of these industries:
- Weight and Size: Aerospace and satellite systems demand lightweight and compact components. Planetary gearboxes with high power density and lightweight materials are preferred to minimize the overall weight and size of the equipment.
- Reliability: Aerospace missions involve critical operations where component failure is not an option. Planetary gearboxes with a proven track record of reliability and durability are essential to ensure mission success.
- High Efficiency: Efficiency is crucial in aerospace applications to optimize power usage and extend the operational life of satellites. Planetary gearboxes with high efficiency ratings contribute to energy conservation.
- Extreme Environments: Aerospace and satellite systems are exposed to harsh conditions such as vacuum, extreme temperatures, and radiation. Planetary gearboxes need to be designed and tested to withstand these conditions without compromising performance.
- Precision and Accuracy: Many aerospace operations require precise positioning and accurate control. Planetary gearboxes with minimal backlash and high precision gear meshing contribute to accurate movements.
- Lubrication: Lubrication plays a vital role in aerospace gearboxes to ensure smooth operation and prevent wear. Gearboxes with efficient lubrication systems or self-lubricating materials are favored.
- Redundancy and Fail-Safe: Some aerospace systems incorporate redundancy to ensure mission success even in case of component failure. Planetary gearboxes with built-in redundancy or fail-safe mechanisms enhance system reliability.
- Integration: Planetary gearboxes need to be seamlessly integrated into the overall design of aerospace and satellite systems. Customization options and compatibility with other components are important factors.
Overall, selecting planetary gearboxes for aerospace and satellite applications involves a comprehensive evaluation of factors related to weight, reliability, efficiency, durability, environmental resistance, precision, and integration to meet the unique demands of these industries.
Impact of Temperature Variations and Environmental Conditions on Planetary Gearbox Performance
The performance of planetary gearboxes can be significantly influenced by temperature variations and environmental conditions. Here’s how these factors impact their operation:
Temperature Variations: Extreme temperature fluctuations can affect the lubrication properties of the gearbox. Cold temperatures can cause the lubricant to thicken, leading to increased friction and reduced efficiency. On the other hand, high temperatures can cause the lubricant to thin out, potentially leading to insufficient lubrication and accelerated wear.
Environmental Contaminants: Planetary gearboxes used in outdoor or industrial environments can be exposed to contaminants such as dust, dirt, moisture, and chemicals. These contaminants can infiltrate the gearbox and degrade the quality of the lubricant. Additionally, abrasive particles can cause wear on gear surfaces, leading to decreased performance and potential damage.
Corrosion: Exposure to moisture, especially in humid or corrosive environments, can lead to corrosion of gearbox components. Corrosion weakens the structural integrity of gears and other components, which can ultimately result in premature failure.
Thermal Expansion: Temperature changes can cause materials to expand and contract. In gearboxes, this can lead to misalignment of gears and improper meshing, causing noise, vibration, and reduced efficiency. Proper consideration of thermal expansion is crucial in gearbox design.
Sealing and Ventilation: To mitigate the impact of temperature and environmental factors, planetary gearboxes need effective sealing to prevent contaminants from entering and to retain the lubricant. Proper ventilation is also essential to prevent pressure build-up inside the gearbox due to temperature changes.
Cooling Systems: In applications where temperature control is critical, cooling systems such as fans or heat exchangers can be incorporated to maintain optimal operating temperatures. This helps prevent overheating and ensures consistent gearbox performance.
Overall, temperature variations and environmental conditions can have a profound impact on the performance and lifespan of planetary gearboxes. Manufacturers and operators need to consider these factors during design, installation, and maintenance to ensure reliable and efficient operation.
Design Principles and Functions of Planetary Gearboxes
Planetary gearboxes, also known as epicyclic gearboxes, are a type of gearbox that consists of one or more planet gears that revolve around a central sun gear, all contained within an outer ring gear. The design principles and functions of planetary gearboxes are based on this unique arrangement:
- Sun Gear: The sun gear is positioned at the center and is connected to the input shaft. It transmits power from the input source to the planetary gears.
- Planet Gears: Planet gears are small gears that rotate around the sun gear. They are typically mounted on a carrier, which is connected to the output shaft. The interaction between the planet gears and the sun gear creates both speed reduction and torque amplification.
- Ring Gear: The outer ring gear is stationary and surrounds the planet gears. The teeth of the planet gears mesh with the teeth of the ring gear. The ring gear serves as the housing for the planet gears and provides a fixed outer reference point.
- Function: Planetary gearboxes offer various gear reduction ratios by altering the arrangement of the input, output, and planet gears. Depending on the configuration, the sun gear, planet gears, or ring gear can serve as the input, output, or stationary element. This flexibility allows planetary gearboxes to achieve different torque and speed combinations.
- Gear Reduction: In a planetary gearbox, the planet gears rotate while also revolving around the sun gear. This double motion creates multiple gear meshing points, distributing the load and enhancing torque transmission. The output shaft, connected to the planet carrier, rotates at a lower speed and higher torque than the input shaft.
- Torque Amplification: Due to the multiple points of contact between the planet gears and the sun gear, planetary gearboxes can achieve torque amplification. The arrangement of gears allows for load sharing and distribution, leading to efficient torque transmission.
- Compact Size: The compact design of planetary gearboxes, achieved by stacking the gears concentrically, makes them suitable for applications where space is limited.
- Multiple Stages: Planetary gearboxes can be designed with multiple stages, where the output of one stage becomes the input of the next. This arrangement allows for high gear reduction ratios while maintaining a compact size.
- Controlled Motion: By controlling the arrangement of the gears and their rotation, planetary gearboxes can provide different motion outputs, including forward, reverse, and even variable speeds.
Overall, the design principles of planetary gearboxes allow them to provide efficient torque transmission, compact size, high gear reduction, and versatile motion control, making them well-suited for various applications in industries such as automotive, robotics, aerospace, and more.
editor by lmc 2024-11-29

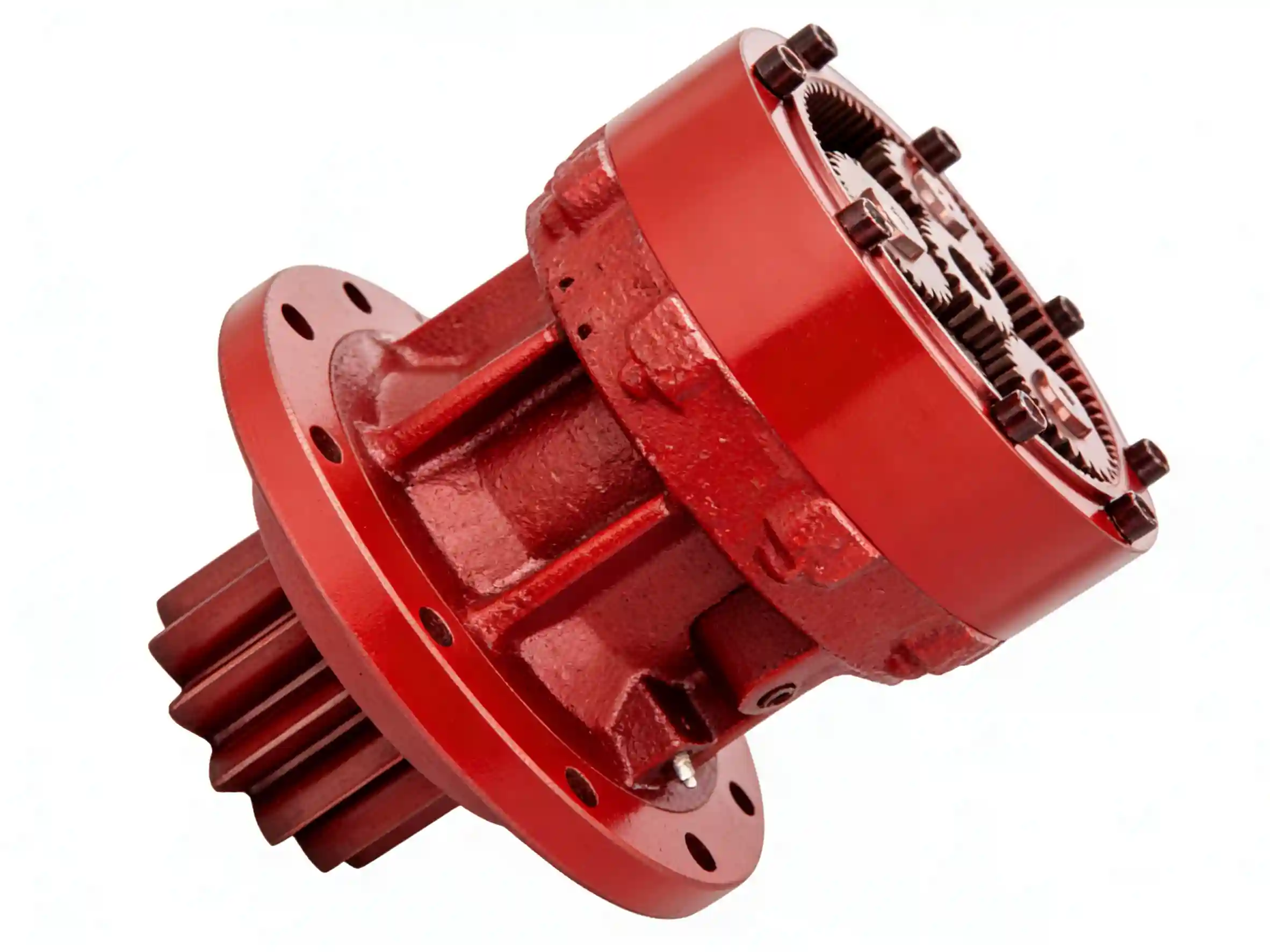

China high quality Exroth Swing Drive Slewing Drive Planetary Gearbox Gfb17t2, Gfb17t3, Gfb26t2, Gfb36t3, Gfb40t2, Gfb50t2, Gfb50t3, Gfb60t2, Gfb60t3, Gfb80t3, Gfb110t3 with high quality
Product Description
Product Description
| MODEL | MAX OUTPUT | RANGE OF RATIO | MAX. | ORBITAL HYD. | HYDRAULIC PISTON MOTOR |
| TORQUE | INPUT SPEED | MOTOR | |||
| Nm | 1: | rpm | |||
| HFT003L | 3000 | 5-21 | 4000 | √ | √ |
| HFT005L | 5000 | 5-75 | 4000 | √ | √ |
| HFT571L | 10000 | 35-79 | 4000 | √ | √ |
| HFT017L | 17000 | 18-171 | 4000 | √ | |
| HFT571L | 24000 | 38-222 | 4000 | √ | |
| HFT026L | 26000 | 18-63 | 4000 | √ | |
| HFT036L | 36000 | 24-270 | 4000 | √ | |
| HFT040L | 40000 | 20-66 | 4000 | √ | |
| HFT045L | 46000 | 66-205 | 4000 | √ | |
| HFT050L | 50000 | 28-1817 | 4000 | √ | |
| HFT060L | 60000 | 26-510 | 3500 | √ | |
| HFT080L | 80000 | 40-190 | 3500 | √ | |
| HFT110L | 11000 | 29-219 | 3500 | √ |
Detailed Photos

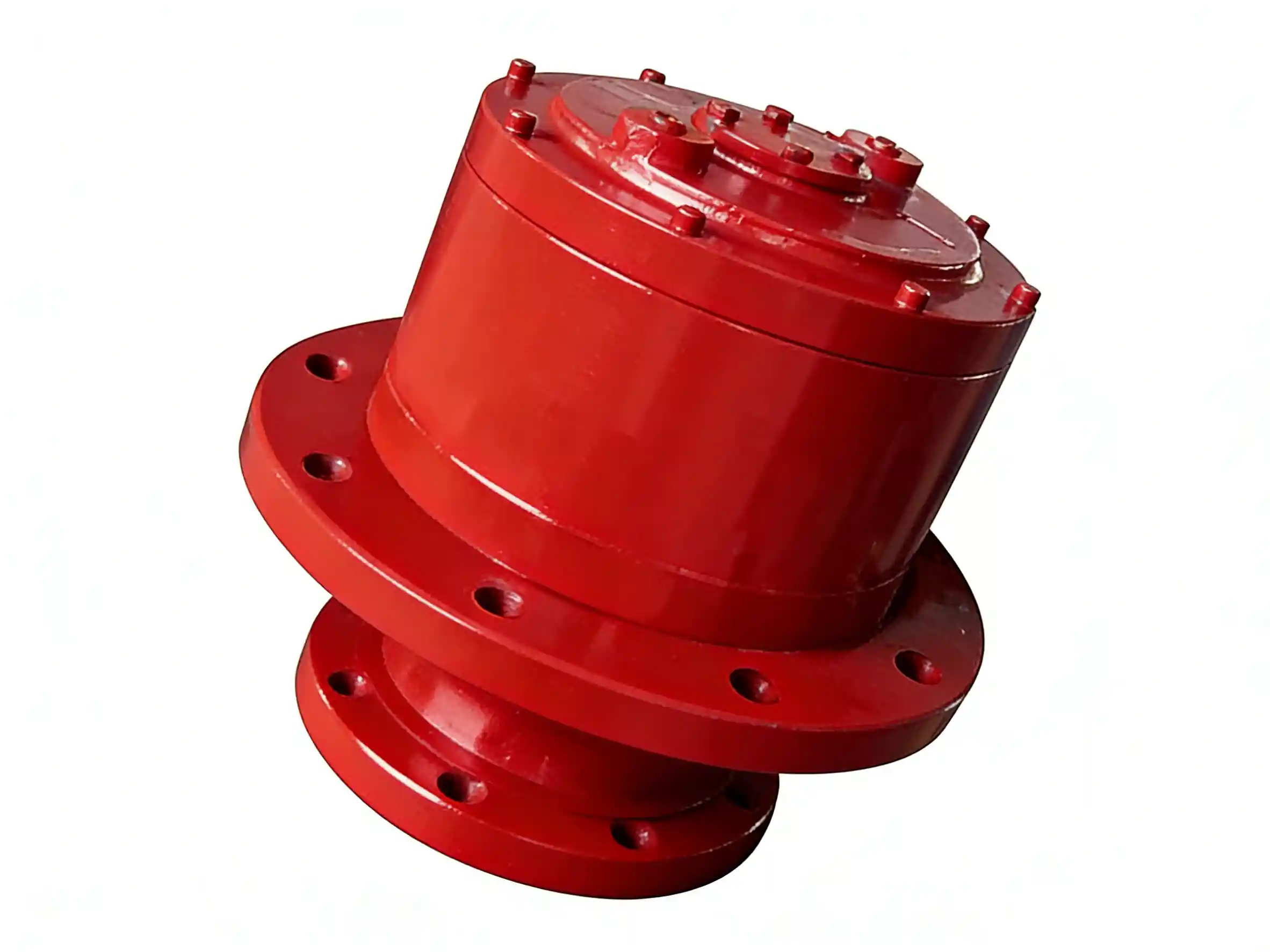

Elite GFT Travel Drives are unsurpassed by any crawler or milling machines. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems.
Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
Specifications:
| Model | GFB036L |
| Max. output torque: | 16000 N.m (Excavator); 26000 N.m (Crane) |
| Ratio: | 24, 29, 39, 48, 68, 80, 101, 117, 132 |
| Motor connection: | Rexroth A2FE, Electric |
| Output Gear | M=10, 12, 14, 16 |
| Weight | 160 kg |
Packaging & Shipping
Application
Exhibition
Our partners
FAQ
1.How to deliver the goods to us?
Usually we will ship the goods to you by sea.Of course,if your goods are very urgent,the HangZhou Airport and ZheJiang Airport are also very nearby.
2.Where are your products mainly exported to?
Our products are mainly exported to over 30 countries such as USA,Germany,Spain,Italy,UK,Korea,Australia,Canada and etc.Our clients include many OEM customers who specialize in agricultural and construction machinery
3.what is your warranty?
Our Gearboxes warranty is 18 Months
4.What’s the packing for the Planetary Gearbox?
It is wooden case.
/* October 22, 2571 15:47:17 */(()=>{function d(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
Contribution of Planetary Gearboxes to Conveyor Belt Efficiency in Mining Operations
Planetary gearboxes play a significant role in enhancing the efficiency of conveyor belts used in mining operations:
- High Torque Capability: Planetary gearboxes are capable of providing high torque output, which is essential for handling heavy loads of mined materials on conveyor belts.
- Compact Design: The compact nature of planetary gearboxes allows them to be integrated into tight spaces, making them suitable for conveyor systems where space is limited.
- Multi-Stage Design: Planetary gearboxes can achieve high gear ratios through multiple stages of gear reduction. This allows for efficient power transmission from the motor to the conveyor, reducing the load on the motor and increasing overall efficiency.
- Load Distribution: Planetary gearboxes distribute the load across multiple planet gears, which helps in minimizing wear and ensuring longer lifespan of the gearbox.
- Variable Speed Control: By using planetary gearboxes with variable speed capabilities, conveyor belts can be operated at different speeds to match the processing requirements, optimizing material handling and energy consumption.
- Overload Protection: Some planetary gearboxes feature built-in overload protection mechanisms, safeguarding the gearbox and conveyor system from damage due to sudden increases in load.
Overall, planetary gearboxes enhance the efficiency, reliability, and performance of conveyor belts in mining operations by providing the necessary torque, compact design, and precise control needed to transport mined materials effectively.
Impact of Temperature Variations and Environmental Conditions on Planetary Gearbox Performance
The performance of planetary gearboxes can be significantly influenced by temperature variations and environmental conditions. Here’s how these factors impact their operation:
Temperature Variations: Extreme temperature fluctuations can affect the lubrication properties of the gearbox. Cold temperatures can cause the lubricant to thicken, leading to increased friction and reduced efficiency. On the other hand, high temperatures can cause the lubricant to thin out, potentially leading to insufficient lubrication and accelerated wear.
Environmental Contaminants: Planetary gearboxes used in outdoor or industrial environments can be exposed to contaminants such as dust, dirt, moisture, and chemicals. These contaminants can infiltrate the gearbox and degrade the quality of the lubricant. Additionally, abrasive particles can cause wear on gear surfaces, leading to decreased performance and potential damage.
Corrosion: Exposure to moisture, especially in humid or corrosive environments, can lead to corrosion of gearbox components. Corrosion weakens the structural integrity of gears and other components, which can ultimately result in premature failure.
Thermal Expansion: Temperature changes can cause materials to expand and contract. In gearboxes, this can lead to misalignment of gears and improper meshing, causing noise, vibration, and reduced efficiency. Proper consideration of thermal expansion is crucial in gearbox design.
Sealing and Ventilation: To mitigate the impact of temperature and environmental factors, planetary gearboxes need effective sealing to prevent contaminants from entering and to retain the lubricant. Proper ventilation is also essential to prevent pressure build-up inside the gearbox due to temperature changes.
Cooling Systems: In applications where temperature control is critical, cooling systems such as fans or heat exchangers can be incorporated to maintain optimal operating temperatures. This helps prevent overheating and ensures consistent gearbox performance.
Overall, temperature variations and environmental conditions can have a profound impact on the performance and lifespan of planetary gearboxes. Manufacturers and operators need to consider these factors during design, installation, and maintenance to ensure reliable and efficient operation.
Contribution of Planetary Gearboxes to Efficient Industrial Automation and Robotics
Planetary gearboxes play a crucial role in enhancing the efficiency of industrial automation and robotics systems by offering several advantages:
1. Compact Design: Planetary gearboxes provide high power density and a compact form factor. This is essential in robotics and automation where space is limited and components need to be tightly integrated.
2. High Torque Density: Planetary gearboxes can achieve high torque output in a compact size, allowing robots and automated systems to handle heavy loads and perform demanding tasks efficiently.
3. Precision and Accuracy: The design of planetary gear systems ensures accurate and precise motion control. This is vital in robotics applications where precise positioning and smooth movement are required for tasks such as pick-and-place operations and assembly.
4. Redundancy: Some planetary gearboxes feature multiple stages and redundant configurations. This provides a level of built-in redundancy, enhancing the reliability of automation systems by allowing continued operation even if one stage fails.
5. Efficiency: Planetary gearboxes are designed for high efficiency, minimizing energy losses and ensuring that the power delivered to the output stage is effectively utilized. This efficiency is crucial for reducing energy consumption and optimizing battery life in robotic applications.
6. Speed Control: Planetary gearboxes allow for precise speed control, enabling robots to perform tasks at varying speeds as needed. This flexibility is essential for tasks that require different motion dynamics or speed profiles.
7. Reduction of Motor Loads: Planetary gearboxes can reduce the load on the motor by providing mechanical advantage through gear reduction. This allows smaller, more efficient motors to be used without sacrificing performance.
8. Shock Absorption: The inherent elasticity of gear teeth in planetary gearboxes can help absorb shocks and impacts, protecting the system components and ensuring smooth operation in dynamic environments.
9. Customization: Planetary gearboxes can be tailored to specific application requirements, including gear ratios, output configurations, and mounting options. This adaptability allows for optimal integration into various automation and robotics setups.
10. Maintenance and Durability: High-quality planetary gearboxes are designed for durability and low maintenance. This is especially important in industrial automation and robotics, where continuous operation and minimal downtime are essential.
Overall, planetary gearboxes contribute significantly to the efficient operation of industrial automation and robotics systems by providing the necessary torque, precision, compactness, and reliability required for these dynamic and demanding applications.
editor by lmc 2024-11-28

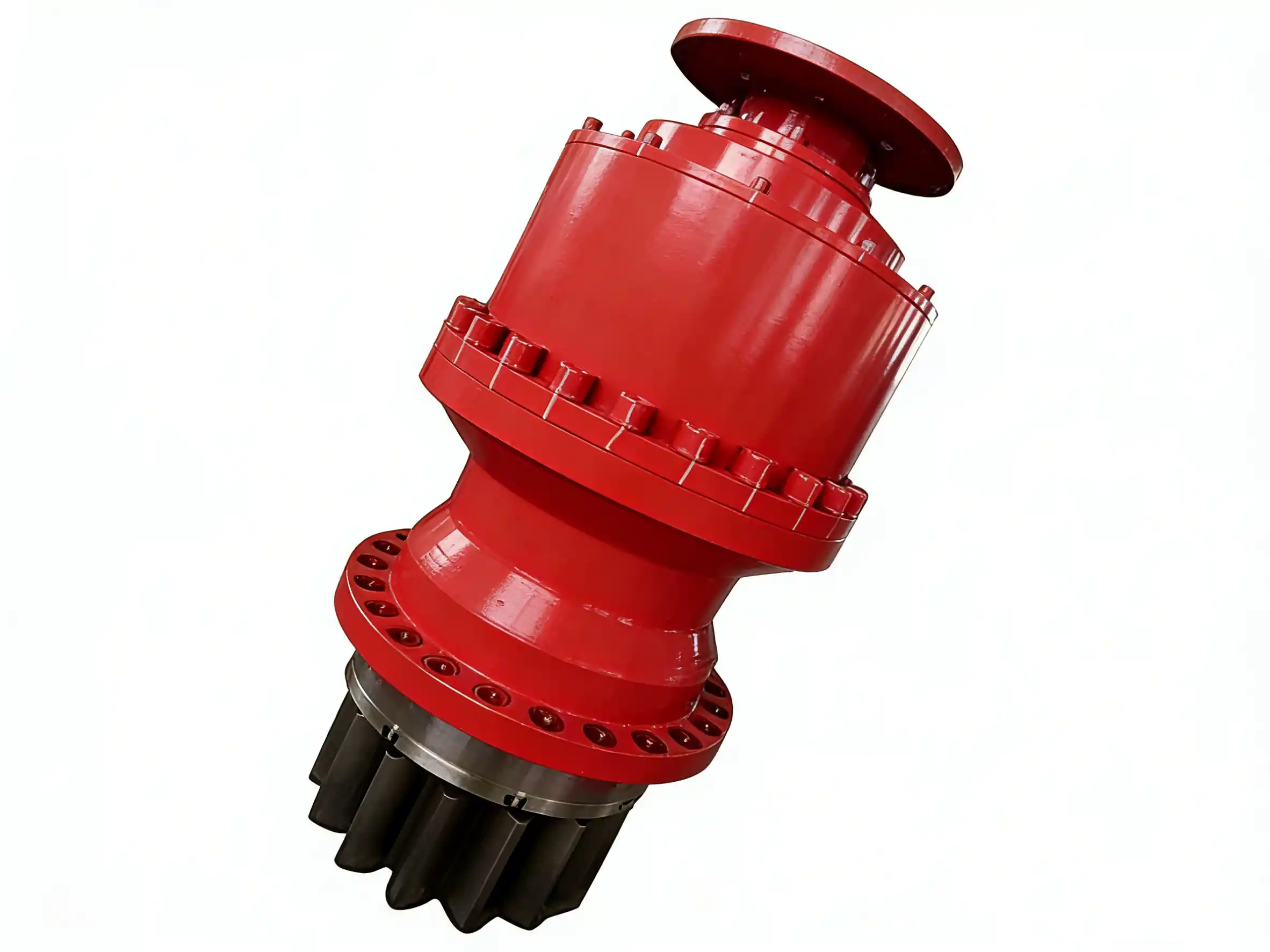

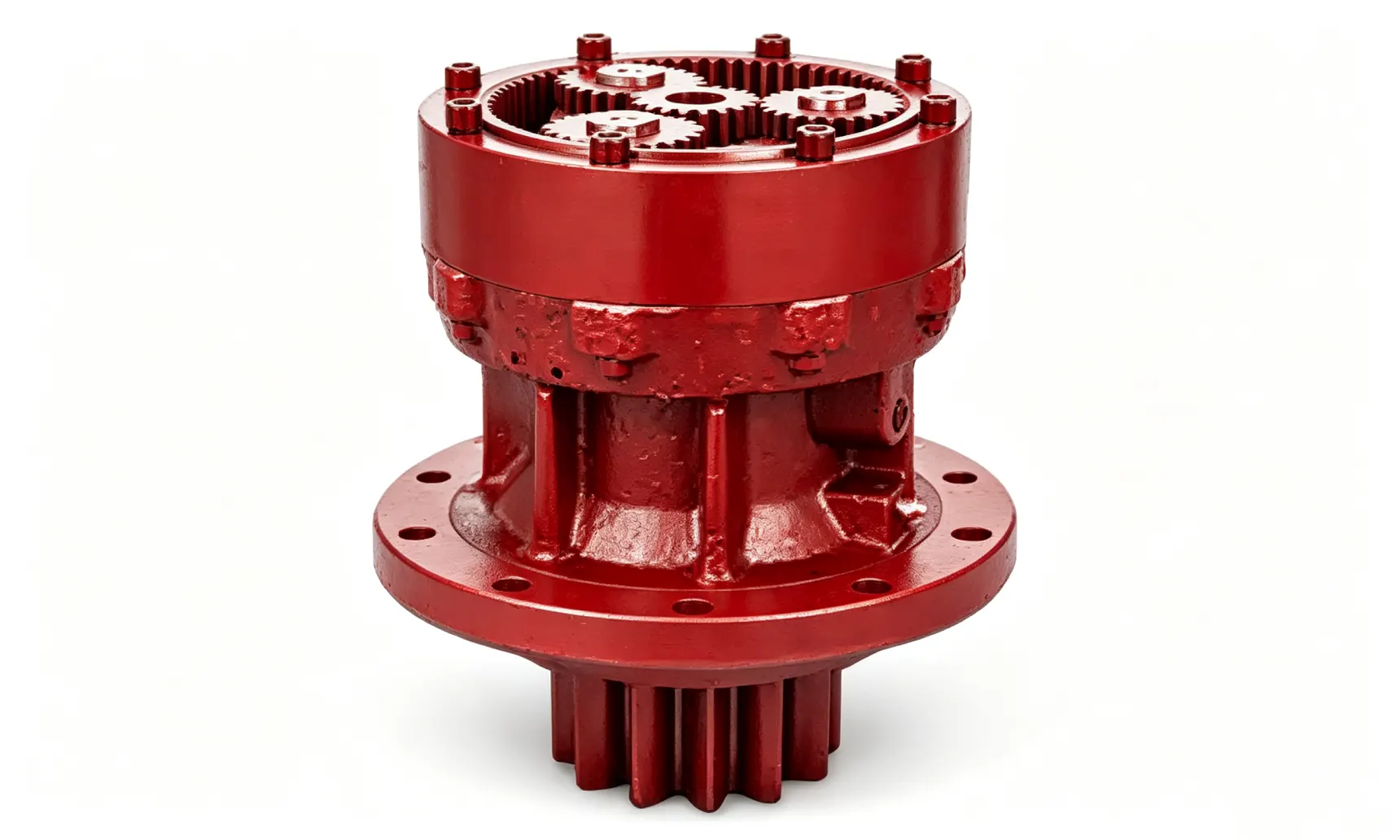

China wholesaler Planetary Gear Slew Drive Gearbox for Cranes and Drilling supplier
Product Description
Planetary Gear Slew Drive Gearbox For Cranes and Drilling
Product Description
Planetary Gear Slew Drive Gearbox For Cranes and Drilling
are proven in many different applications, such as cranes, excavators, and drilling platforms. Our gear units for slewing gear drives have a modular design.
They can be combined with a long or short lantern gear drive on the output side. The mounted output pinions are manufactured according to the customer’s specifications. On the input side, we offer solutions for both electric motors and high-speed or low-speed hydraulic motors, some of which are already standardized.
Product Parameters
| Ratio range | 3.15-9N. M |
| Output speed | 0.425-445 r/min |
Key Features
- Compact, space-saving design
- Low weight
- Low noise level
- Variable lantern gear drive lengths acc. to the customer’s specification
- Modular design creates increased flexibility and multiple mounting options
- No alignment on-site due to bracket with motor, gear unit, brake and coupling
- Customized solutions for specific projects
- Option of eccentric installation to enable the backlash to be adjusted between the pinion and the girth gear
- Optimized sealing systems prolong the service life
Production Facilities
FAQ
1. Can you customize according to our requirements?
Yes, we can design nonstandard products according to customer’s drawing and sample.
2.What ‘s your product range?
speed reducer,gearbox,gear motor,pump,crusher
3. Reason why we buy from you?
Wth over 20 years of production experience and credibility. With professional engineer team, advanced technology production and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken.
Packing Details
/* October 22, 2571 15:47:17 */(()=>{function d(e,r){var a,o={};try{e&&e.split(“,”).forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
Contribution of Planetary Gearboxes to Conveyor Belt Efficiency in Mining Operations
Planetary gearboxes play a significant role in enhancing the efficiency of conveyor belts used in mining operations:
- High Torque Capability: Planetary gearboxes are capable of providing high torque output, which is essential for handling heavy loads of mined materials on conveyor belts.
- Compact Design: The compact nature of planetary gearboxes allows them to be integrated into tight spaces, making them suitable for conveyor systems where space is limited.
- Multi-Stage Design: Planetary gearboxes can achieve high gear ratios through multiple stages of gear reduction. This allows for efficient power transmission from the motor to the conveyor, reducing the load on the motor and increasing overall efficiency.
- Load Distribution: Planetary gearboxes distribute the load across multiple planet gears, which helps in minimizing wear and ensuring longer lifespan of the gearbox.
- Variable Speed Control: By using planetary gearboxes with variable speed capabilities, conveyor belts can be operated at different speeds to match the processing requirements, optimizing material handling and energy consumption.
- Overload Protection: Some planetary gearboxes feature built-in overload protection mechanisms, safeguarding the gearbox and conveyor system from damage due to sudden increases in load.
Overall, planetary gearboxes enhance the efficiency, reliability, and performance of conveyor belts in mining operations by providing the necessary torque, compact design, and precise control needed to transport mined materials effectively.
Contribution of Planetary Gearboxes to Construction Machinery and Heavy Equipment
Planetary gearboxes play a crucial role in enhancing the proper functioning of construction machinery and heavy equipment. Here’s how they contribute:
High Torque Transmission: Construction machinery often requires high torque to handle heavy loads and perform tasks like digging, lifting, and material handling. Planetary gearboxes excel in transmitting high torque efficiently, allowing these machines to operate effectively even under demanding conditions.
Compact Design: Many construction and heavy equipment applications have limited space for gear mechanisms. Planetary gearboxes offer a compact design with a high power-to-weight ratio. This compactness allows manufacturers to integrate gearboxes into tight spaces without compromising performance.
Customizable Ratios: Different construction tasks require varying speeds and torque levels. Planetary gearboxes offer the advantage of customizable gear ratios, allowing equipment designers to tailor the gearbox to the specific needs of the application. This flexibility enhances the versatility of construction machinery.
Durability and Reliability: Construction sites are challenging environments with dust, debris, and extreme weather conditions. Planetary gearboxes are known for their durability and robustness, making them well-suited for heavy-duty applications. Their enclosed design protects internal components from contaminants and ensures reliable operation.
Efficient Power Distribution: Many construction machines are equipped with multiple functions that require power distribution among different components. Planetary gearboxes can be designed with multiple output shafts, enabling efficient distribution of power to various tasks while maintaining precise control.
Reduced Maintenance: The rugged construction and efficient power transmission of planetary gearboxes result in reduced wear and lower maintenance requirements. This is particularly beneficial in construction settings where downtime for maintenance can be costly.
Overall, planetary gearboxes contribute significantly to the proper functioning of construction machinery and heavy equipment by providing high torque, compactness, customization, durability, efficient power distribution, and reduced maintenance needs. Their capabilities enhance the performance and reliability of these machines in the demanding construction industry.
Challenges and Solutions for Managing Power Transmission Efficiency in Planetary Gearboxes
Managing power transmission efficiency in planetary gearboxes is crucial to ensure optimal performance and minimize energy losses. Several challenges and solutions are involved in maintaining high efficiency:
1. Gear Meshing Efficiency: The interaction between gears can lead to energy losses due to friction and meshing misalignment. To address this, manufacturers use precision manufacturing techniques to ensure accurate gear meshing and reduce friction. High-quality materials and surface treatments are also employed to minimize wear and friction.
2. Lubrication: Proper lubrication is essential to reduce friction and wear between gear surfaces. Using high-quality lubricants with the appropriate viscosity and additives can enhance power transmission efficiency. Regular maintenance and monitoring of lubrication levels are vital to prevent efficiency losses.
3. Bearing Efficiency: Bearings support the rotating elements of the gearbox and can contribute to energy losses if not properly designed or maintained. Choosing high-quality bearings and ensuring proper alignment and lubrication can mitigate efficiency losses in this area.
4. Bearing Preload: Incorrect bearing preload can lead to increased friction and efficiency losses. Precision assembly and proper adjustment of bearing preload are necessary to optimize power transmission efficiency.
5. Mechanical Losses: Various mechanical losses, such as windage and churning losses, can occur in planetary gearboxes. Designing gearboxes with streamlined shapes and efficient ventilation systems can reduce these losses and enhance overall efficiency.
6. Material Selection: Choosing appropriate materials with high strength and minimal wear characteristics is essential for reducing power losses due to material deformation and wear. Advanced materials and surface coatings can be employed to enhance efficiency.
7. Noise and Vibration: Excessive noise and vibration can indicate energy losses in the form of mechanical inefficiencies. Proper design and precise manufacturing techniques can help minimize noise and vibration, indicating better power transmission efficiency.
8. Efficiency Monitoring: Regular efficiency monitoring through testing and analysis allows engineers to identify potential issues and optimize gearbox performance. This proactive approach ensures that any efficiency losses are promptly addressed.
By addressing these challenges through careful design, material selection, manufacturing techniques, lubrication, and maintenance, engineers can manage power transmission efficiency in planetary gearboxes and achieve high-performance power transmission systems.
editor by lmc 2024-11-27
China wholesaler ZD High Precision Low Backlash Spur or Helical Gear Planetary Speed Gear Reducer Gearbox For Servo Motor Steeping Motor manufacturer
ZD High Precision Low Backlash Spur or Helical Gear Planetary Speed Gear Reducer Gearbox For Servo Motor Steeping Motor
Our ZD High Precision Low Backlash Spur or Helical Gear Planetary Speed Gear Reducer Gearbox is a versatile reducer that offers small size, large output torque, high speed ratio, high efficiency, and reliable performance. The inner gear is made of low carbon alloy steel and undergoes carburizing quenching and grinding or nitriding process. The planetary gearbox is available in both spur gear and helical gear configurations, which can be selected according to the needs of the application.
Model Selection
Our ZD High Precision Low Backlash Spur or Helical Gear Planetary Speed Gear Reducer Gearbox is available in different models to meet the requirements of various applications. Customers can choose the right precision reducer based on their specific needs.
Range Of Planetary Gearbox
Our ZD High Precision Low Backlash Spur or Helical Gear Planetary Speed Gear Reducer Gearbox is suitable for use in a wide range of applications, including servo motors and stepping motors. It is designed to provide reliable performance and high efficiency even in demanding industrial environments.
Customized Product Service
We offer customized product services to meet the specific needs of our customers. We welcome customers to provide us with drawings and samples, so we can design and manufacture products tailored to their requirements.
Other Related Products
Our company supplies a wide range of products for industrial use, including agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, roller chains, pulleys, planetary gearboxes, timing pulleys, bushings, etc. We are committed to providing high-quality products, preferential prices, and considerate services to meet the needs of our customers.
FAQs
What type of motors do you produce?
We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box. You can find specifications for these motors on our website, or you can email us to recommend motors based on your specific requirements.
How do I select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Do you offer customized services for your standard motors?
Yes, we can customize the voltage, speed, torque and shaft size/shape of our standard motors. We can also add wires/cables, connectors, capacitors, or EMC to meet your specific requirements.
Do you offer individual design services for motors?
Yes, we offer individual design services for our customers. However, mold development costs and design charges may apply.
What is your lead time?
Our regular standard products typically require 15-30 days, while customized products may take longer. However, we are flexible on lead times and will work with you to meet your specific orders.
All the content of this page is from the Internet and is only meant for reference purposes for product selection. Our products are replacement parts and not original spare parts. We are not the holder of the original trademarks mentioned in the content. Our replacement parts are designed to perfectly adapt to the original spare parts. If you need to buy original spare parts, please contact the original factory or supplier.
Performance Characteristics of Planetary Gearbox
- High torque transmission capabilities: Planetary gearboxes offer excellent torque transmission due to their design.
- High precision and efficiency: The arrangement of gears in a planetary gearbox allows for efficient power transmission with minimal loss.
- Compact and lightweight: Planetary gearboxes have a compact design and are lightweight, making them suitable for various applications.
- Low backlash: Planetary gearboxes have low backlash, ensuring precise movement and positioning.
- Ability to handle high speeds: Planetary gearboxes can handle high input and output speeds, making them versatile for different applications.
Types and Characteristics of Planetary Gearbox
There are several types of planetary gearboxes, each with its own unique characteristics:

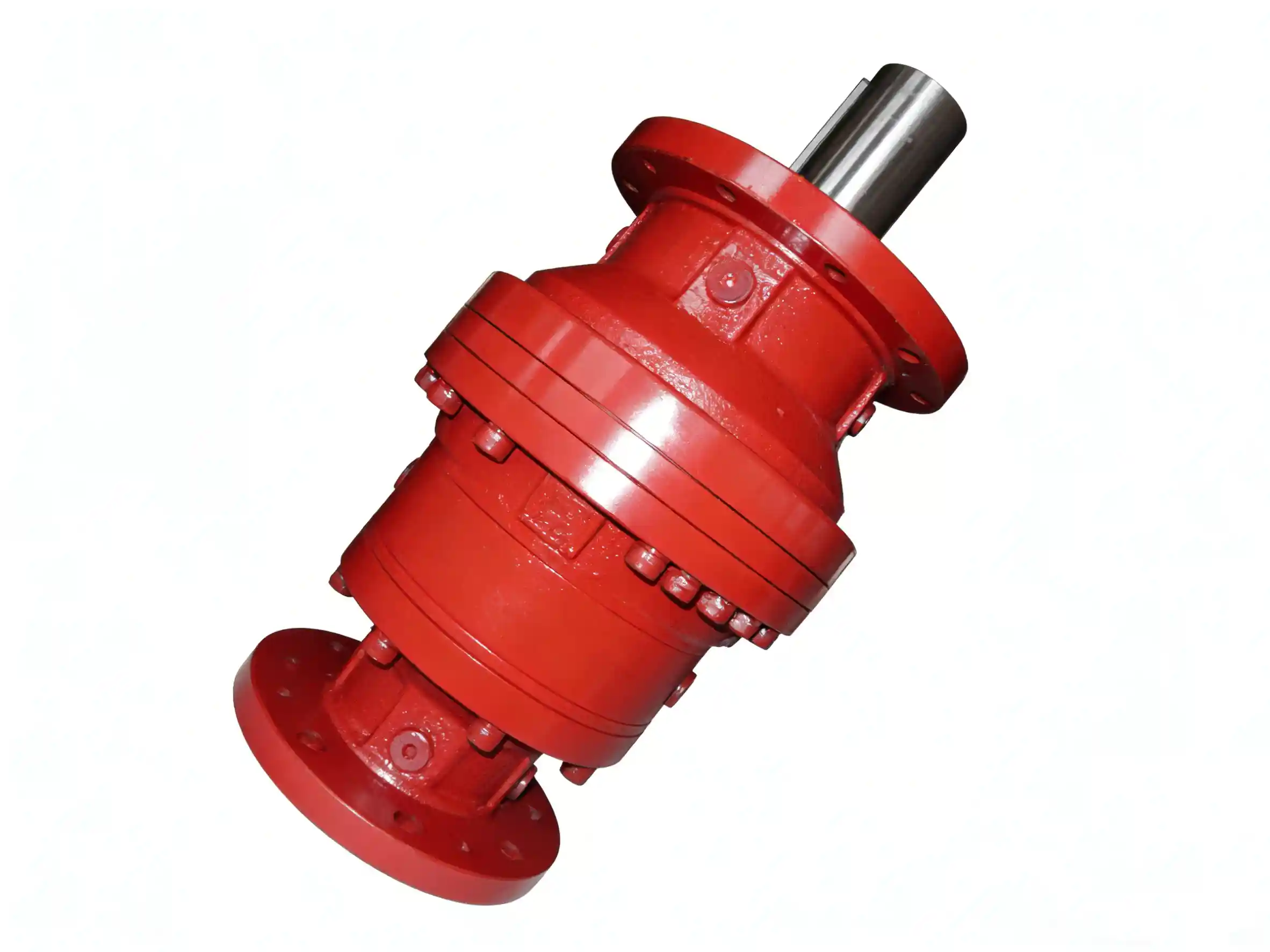

- Inline Planetary Gearbox: This type of gearbox has a coaxial input and output shaft, making it suitable for applications where space is limited.

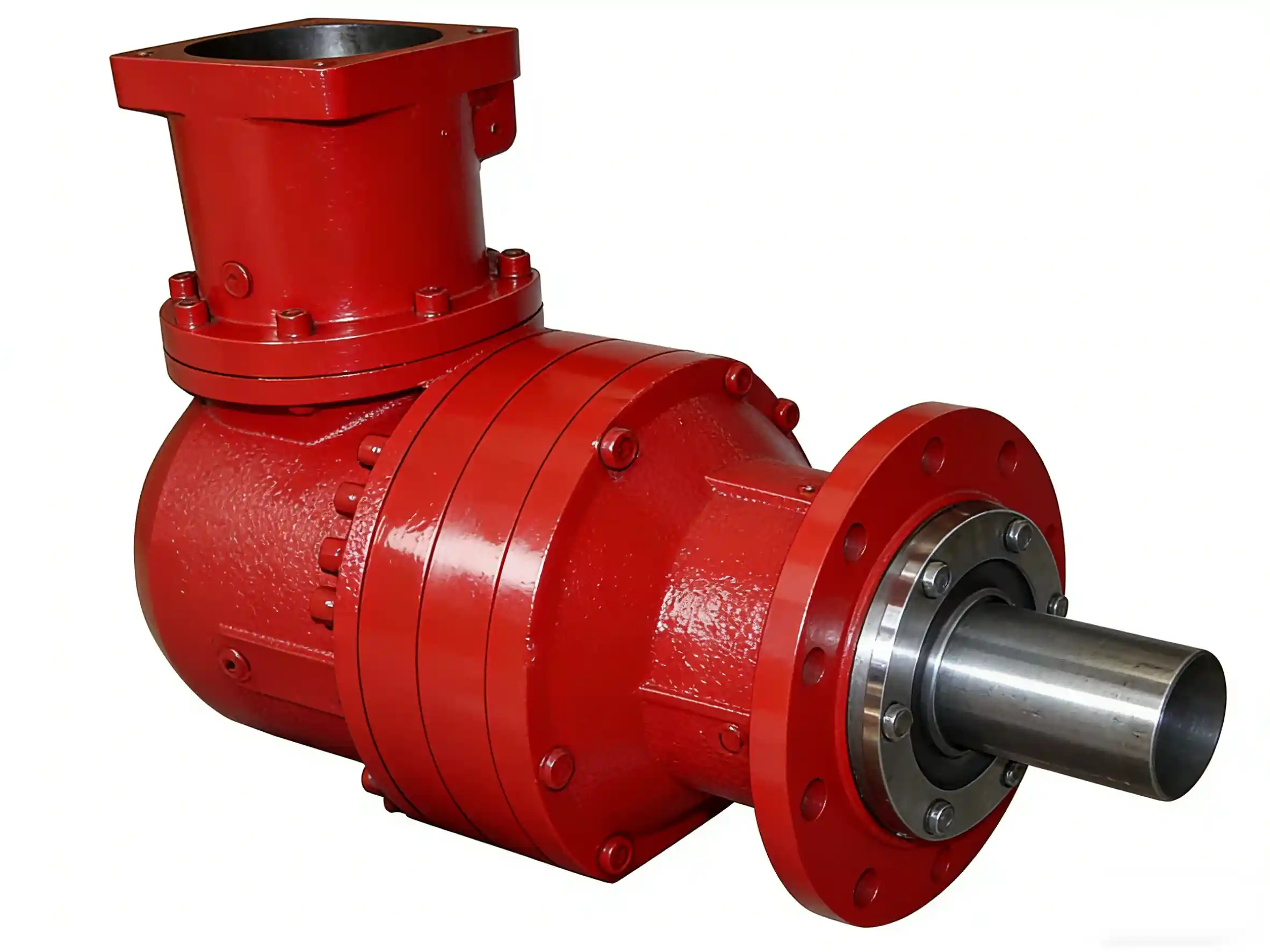

- Right Angle Planetary Gearbox: This gearbox has a right angle input and output shaft arrangement, allowing for flexibility in design and installation.
- Orthogonal Shaft Planetary Gearbox: With its orthogonal input and output shafts, this gearbox provides efficient power transmission in a compact design.
Advantages of Planetary Gearbox Made of Different Materials
Planetary gearboxes can be made of various materials, each offering its own advantages:
- Steel Planetary Gearbox: Steel gearboxes are known for their high strength and durability, making them suitable for heavy-duty applications.
- Aluminum Planetary Gearbox: Aluminum gearboxes are lightweight and provide good resistance to corrosion, making them ideal for applications where weight is a concern.
- Composite Planetary Gearbox: Composite gearboxes offer a combination of strength and light weight, making them suitable for applications where both factors are important.
Application of Planetary Gearbox
The versatility of planetary gearboxes allows them to be used in various fields:
- Automotive: Planetary gearboxes are used in automotive transmissions for efficient power transmission.
- Aerospace: Planetary gearboxes are utilized in aerospace applications for their high precision and reliability.
- Industrial Robotics: Planetary gearboxes are commonly found in industrial robots, providing accurate movement and positioning.

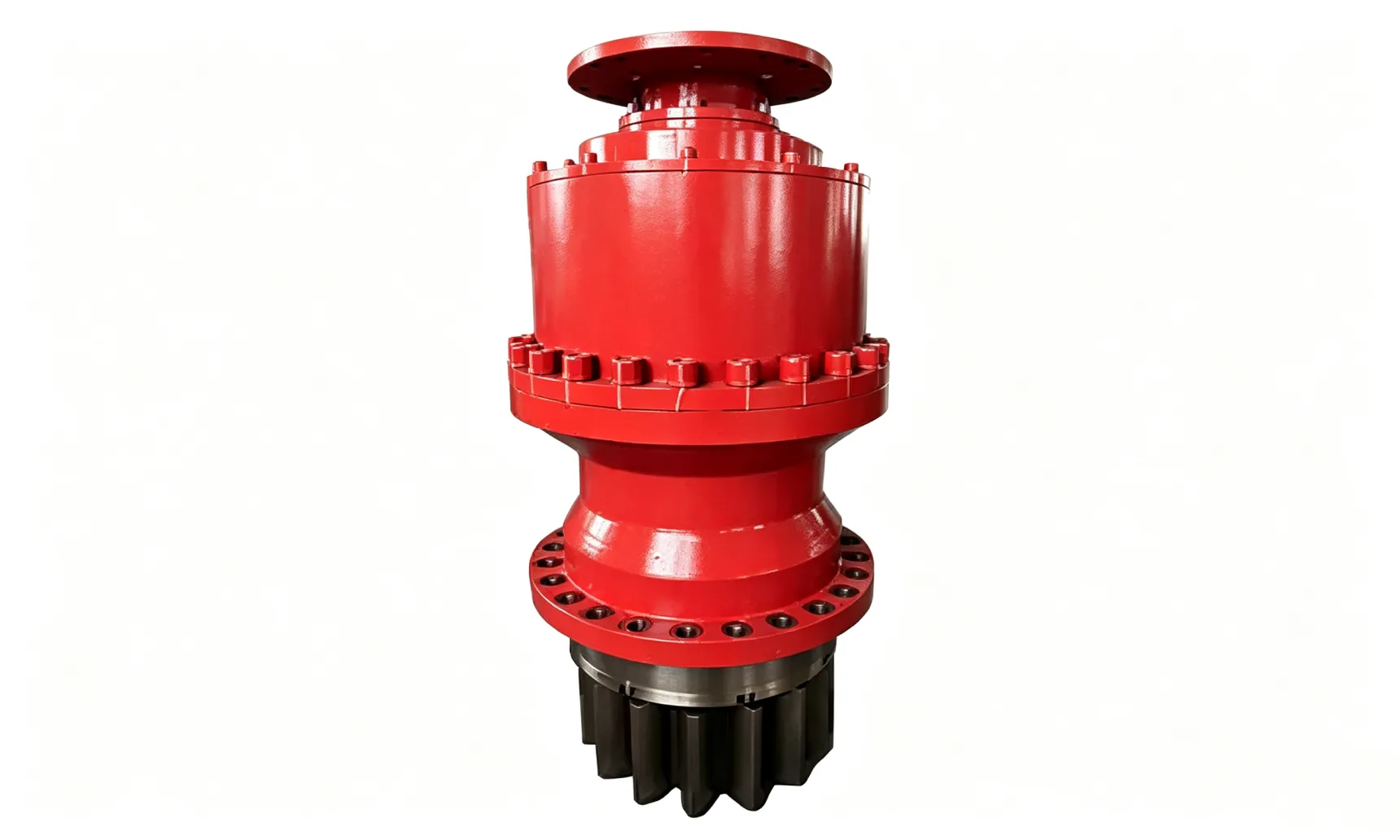

- Wind Turbines: Planetary gearboxes are used in wind turbines to convert the low-speed rotation of the blades into high-speed rotation of the generator.
- Medical Equipment: Planetary gearboxes play a crucial role in medical equipment, ensuring precise and reliable operation.
Future Development Trends and Opportunities
Planetary gearbox products have a promising future with the following development trends and opportunities:
- Increased demand for automation in various industries will drive the need for advanced planetary gearboxes.
- The growing renewable energy sector will create opportunities for planetary gearboxes in wind turbines and solar power systems.
- Advancements in material technology will lead to the development of more efficient and lightweight planetary gearboxes.
Choosing a Suitable Planetary Gearbox
When selecting a planetary gearbox, consider the following aspects:
- Load Requirements: Determine the torque and speed requirements of your application to choose a gearbox that can handle the load.
- Ratio Selection: Select a gearbox with the appropriate gear ratio to achieve the desired output speed.
- Type of Gearbox: Choose the type of planetary gearbox that best suits your space and design requirements.
- Environmental Factors: Consider factors such as temperature, humidity, and contamination to ensure the gearbox can withstand the operating conditions.
- Maintenance and Durability: Evaluate the maintenance requirements and expected durability of the gearbox to ensure long-term reliability.
In summary, planetary gearboxes offer high torque transmission capabilities, high precision and efficiency, compact design, low backlash, and the ability to handle high speeds. There are different types of planetary gearboxes, each with its own characteristics. The choice of material in the gearbox affects its strength, weight, and corrosion resistance. Planetary gearboxes find applications in automotive, aerospace, industrial robotics, wind turbines, and medical equipment. The future of planetary gearbox products is promising, with opportunities in automation, renewable energy, and material advancements. When selecting a gearbox, consider load requirements, ratio selection, type of gearbox, environmental factors, maintenance, and durability.
Author: Dream
China Best Sales 42mm Micro Planetary Speed Reducer Ghp42 Planetary Gearbox High Speed Ultra Noise High Torque Precise Gear Box Maxon Replacement air compressor lowes
China Best Sales 42mm Micro Planetary Speed Reducer Ghp42 Planetary Gearbox High Speed Ultra Noise High Torque Precise Gear Box Maxon Replacement air compressor lowes
This micro planetary speed reducer Ghp42 gearbox is a high-quality, high-torque device designed for industrial use. Its cylindrical external shell and compact structure make it easy to install. The output end has a plane connection, and the product can select an appropriate flange and adapter bushings to adapt to any motor. The gearbox comes with various ratios and precision options, making it a versatile and customizable solution for any application.
Features:
- Cylindrical external shell, small volume
- Compact structure
- Output end plane connection
- Easy installation
- Customizable flange and adapter bushings to fit any motor
- Available in various ratios and precision options
Product Parameters
Ratio:
| Stage 1 | Ratio: | 4.4:1 | 6.5:1 | 7.5 | ||||||
| Max. continuous torque | 6.5 N.m | |||||||||
| Max. intermittent torque at gear output | 19.5 N.m | |||||||||
| precision options | Routine Precision | ≤2 °(Default Value) | ||||||||
| high precision | ≤5arcmin (Customizable) | |||||||||
| Stage 2 | Ratio: | 15:1 | 17:1 | 24:1 | 32:1 | 48:1 | 58:1 | |||
| Max. continuous torque | 8.6 N.m | |||||||||
| Max. intermittent torque at gear output | 25.8 N.m | |||||||||
| precision options | Routine Precision | ≤2 °(Default Value) | ||||||||
| high precision | ≤10arcmin (Customizable) | |||||||||
| Stage 3 | Ratio: | 65.5:1 | 75:1 | 98:1 | 125:1 | 150:1 | 207:1 | 250:1 | ||
| Max. continuous torque | 10.8 N.m | |||||||||
| Max. intermittent torque at gear output | 32.4 N.m | |||||||||
| precision options | Routine Precision | ≤2 °(Default Value) | ||||||||
| high precision | ≤15arcmin (Customizable) | |||||||||
| Stage 4 | Ratio: | 277:1 | 302:1 | 400:1 | 706:1 | 950:1 | 1500:1 | 1860:1 | 3380:1 | |
| Max. continuous torque | 13 N.m | |||||||||
| Max. intermittent torque at gear output | 39 N.m | |||||||||
| precision options | Routine Precision | ≤2 °(Default Value) | ||||||||
| high precision | ≤20arcmin (Customizable) | |||||||||
Parameters of the gearbox
| Gear wheel material: | Metal | Lubricating: | grease | |
| Noise: | ≤50 db | Max. Input speed (r/min): | ≤30000 rpm | |
| It can be customized when the input speed is over 40000 rpm | ||||
| Max. axial load: | ≤6Kgf | Max. radial load(10mm from flange): | ≤10Kgf | |
| Radial play of shaft: | ≤0.04mm | Backlash for 1 stage: | ≤1.5° | |
| Axial play of shaft: | ≤0.4mm | Operating temperature range: | (-30~+100)ºC |
Dimensions of the gearbox
- The dimensions of the output and input shaft can be customizable, and there will be a keyway on 4*4 in the standard output shaft
- GHP42: Stage 1 “L”=43.8, Stage 2 “L”=54.6, Stage 3 “L”=65.4, Stage 4 “L”=76.2, Gearbox Length is nonstandard at high speed
Our company mainly supplies various products for industrial use, such as agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, roller chains, pulleys, planetary gearboxes, timing pulleys, bushings, etc. Customers are welcome to customize drawings and samples. We are committed to providing high-quality products, preferential prices, and considerate services.
FAQs
-
What is the maximum input speed for the Ghp42 planetary gearbox?
The maximum input speed is 30000 rpm, but it can be customized for speeds over 40000 rpm.
-
What is the maximum continuous torque for the gearbox?
The maximum continuous torque varies depending on the stage, with Stage 1 having a maximum continuous torque of 6.5 N.m and Stage 4 having a maximum continuous torque of 13 N.m.
-
Is the gearbox easy to install?
Yes, the cylindrical external shell and compact structure of the gearbox make it easy to install. The output end has a plane connection, and the product can select an appropriate flange and adapter bushings to adapt to any motor.
-
What precision options are available for the gearbox?
The gearbox comes with precision options of Routine Precision, which is ≤2° (default value), and high precision, which is ≤5arcmin (customizable) for Stage 1 and ≤20arcmin (customizable) for Stages 2, 3, and 4.
-
What are the other products supplied by the company?
Our company mainly supplies various products for industrial use, such as agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, roller chains, pulleys, planetary gearboxes, timing pulleys, bushings, etc. Customers are welcome to customize drawings and samples.
All the content of this page is from the Internet and is only meant for reference purposes for product selection. Our products are replacement parts and not original spare parts. We are not the holder of the original trademarks mentioned in the content. Our replacement parts are designed to perfectly adapt to the original spare parts. If you need to buy original spare parts, please contact the original factory or supplier.
Performance Characteristics of Planetary Gearbox
- High torque transmission capabilities: Planetary gearboxes offer excellent torque transmission due to their design.
- High precision and efficiency: The arrangement of gears in a planetary gearbox allows for efficient power transmission with minimal loss.
- Compact and lightweight: Planetary gearboxes have a compact design and are lightweight, making them suitable for various applications.
- Low backlash: Planetary gearboxes have low backlash, ensuring precise movement and positioning.
- Ability to handle high speeds: Planetary gearboxes can handle high input and output speeds, making them versatile for different applications.
Types and Characteristics of Planetary Gearbox
There are several types of planetary gearboxes, each with its own unique characteristics:
- Inline Planetary Gearbox: This type of gearbox has a coaxial input and output shaft, making it suitable for applications where space is limited.
- Right Angle Planetary Gearbox: This gearbox has a right angle input and output shaft arrangement, allowing for flexibility in design and installation.
- Orthogonal Shaft Planetary Gearbox: With its orthogonal input and output shafts, this gearbox provides efficient power transmission in a compact design.
Advantages of Planetary Gearbox Made of Different Materials
Planetary gearboxes can be made of various materials, each offering its own advantages:
- Steel Planetary Gearbox: Steel gearboxes are known for their high strength and durability, making them suitable for heavy-duty applications.
- Aluminum Planetary Gearbox: Aluminum gearboxes are lightweight and provide good resistance to corrosion, making them ideal for applications where weight is a concern.
- Composite Planetary Gearbox: Composite gearboxes offer a combination of strength and light weight, making them suitable for applications where both factors are important.
Application of Planetary Gearbox
The versatility of planetary gearboxes allows them to be used in various fields:
- Automotive: Planetary gearboxes are used in automotive transmissions for efficient power transmission.
- Aerospace: Planetary gearboxes are utilized in aerospace applications for their high precision and reliability.
- Industrial Robotics: Planetary gearboxes are commonly found in industrial robots, providing accurate movement and positioning.
- Wind Turbines: Planetary gearboxes are used in wind turbines to convert the low-speed rotation of the blades into high-speed rotation of the generator.
- Medical Equipment: Planetary gearboxes play a crucial role in medical equipment, ensuring precise and reliable operation.
Future Development Trends and Opportunities
Planetary gearbox products have a promising future with the following development trends and opportunities:
- Increased demand for automation in various industries will drive the need for advanced planetary gearboxes.
- The growing renewable energy sector will create opportunities for planetary gearboxes in wind turbines and solar power systems.
- Advancements in material technology will lead to the development of more efficient and lightweight planetary gearboxes.
Choosing a Suitable Planetary Gearbox
When selecting a planetary gearbox, consider the following aspects:
- Load Requirements: Determine the torque and speed requirements of your application to choose a gearbox that can handle the load.
- Ratio Selection: Select a gearbox with the appropriate gear ratio to achieve the desired output speed.
- Type of Gearbox: Choose the type of planetary gearbox that best suits your space and design requirements.
- Environmental Factors: Consider factors such as temperature, humidity, and contamination to ensure the gearbox can withstand the operating conditions.
- Maintenance and Durability: Evaluate the maintenance requirements and expected durability of the gearbox to ensure long-term reliability.
In summary, planetary gearboxes offer high torque transmission capabilities, high precision and efficiency, compact design, low backlash, and the ability to handle high speeds. There are different types of planetary gearboxes, each with its own characteristics. The choice of material in the gearbox affects its strength, weight, and corrosion resistance. Planetary gearboxes find applications in automotive, aerospace, industrial robotics, wind turbines, and medical equipment. The future of planetary gearbox products is promising, with opportunities in automation, renewable energy, and material advancements. When selecting a gearbox, consider load requirements, ratio selection, type of gearbox, environmental factors, maintenance, and durability.
Author: Dream
China Custom Digital Camera Miniature Planetary Gearbox wholesaler
China Custom Digital Camera Miniature Planetary Gearbox Wholesaler
Product Description
Introducing the Zhaowei DC 6V 300rpm geared small motor, a high-quality and versatile product that is perfect for various applications. This miniature planetary gearbox is designed to provide efficient and reliable performance, making it an excellent choice for your needs.
With its advanced control system, this motor can convert circular motion into linear motion, allowing for precise pushing, pulling, and lifting of heavy objects. It is widely used in intelligent linear drive terminals and can be customized to meet your specific requirements.
Key Specifications:
- Current range: Customized as needed
- Voltage range: 12-24VDC
- Frequency: 2400 PPS
- Itinerary: Customized as needed
- Time: 0.2-1.5 S
- Thrust: Customized as needed
- Input speed: Customized as needed
- Operating temperature: -20°C to +85°C
- Noise: Below 50dB after stabilization
Key Features:
- This coaxial linear actuator consists of a motor, gearbox, and lead screw, providing a reliable and efficient solution for linear motion applications.
- All specifications of the linear actuator can be customized according to your specific needs, ensuring a perfect fit for your project.
- Multi-application: This electric coaxial linear actuator is suitable for various intelligent linear drive terminals, including household appliances, home care facilities, massage chairs, and more.
We take pride in providing application solutions tailored to your needs and ideas. Whether you require customization or have specific requirements, our team is here to assist you.
Application
Our Zhaowei DC 6V 300rpm geared small motor can be applied in various fields, including:
| Application | Examples |
|---|---|
| Smart wearable devices | Watch, VR, AR, XR, etc. |
| Household appliances | Kitchen appliances, sewing machines, vacuum cleaners, and more. |
| Communication equipment | 5G base stations, video conference systems, mobile phones, etc. |
| Office automation equipment | Scanners, printers, copy machines, computer peripherals, and more. |
| Automotive products | Car DVD players, door lock actuators, car antennas, and more. |
| Toys and models | Radio control models, educational robots, automatic feeders, and more. |
| Medical equipment | Blood pressure meters, medical beds, surgical staplers, and more. |
| Industrial applications | Flow control valves, seismic testing, agricultural unmanned aerial vehicles, and more. |
| Electric power tools | Electric drills, screwdrivers, garden tools, and more. |
| Precision instruments | Optics instruments, automatic vending machines, wire-stripping machines, and more. |
| Personal care | Toothbrushes, hair clippers, massagers, and more. |
| Consumer electronics | Cameras, mobile phones, digital cameras, and more. |
| Robots | Educational robots, programming robots, medical robots, and more. |
Frequently Asked Questions (FAQ)
- Can the gearbox be customized?
- High torque transmission capabilities: Planetary gearboxes offer excellent torque transmission due to their design.
- High precision and efficiency: The arrangement of gears in a planetary gearbox allows for efficient power transmission with minimal loss.
- Compact and lightweight: Planetary gearboxes have a compact design and are lightweight, making them suitable for various applications.
- Low backlash: Planetary gearboxes have low backlash, ensuring precise movement and positioning.
- Ability to handle high speeds: Planetary gearboxes can handle high input and output speeds, making them versatile for different applications.

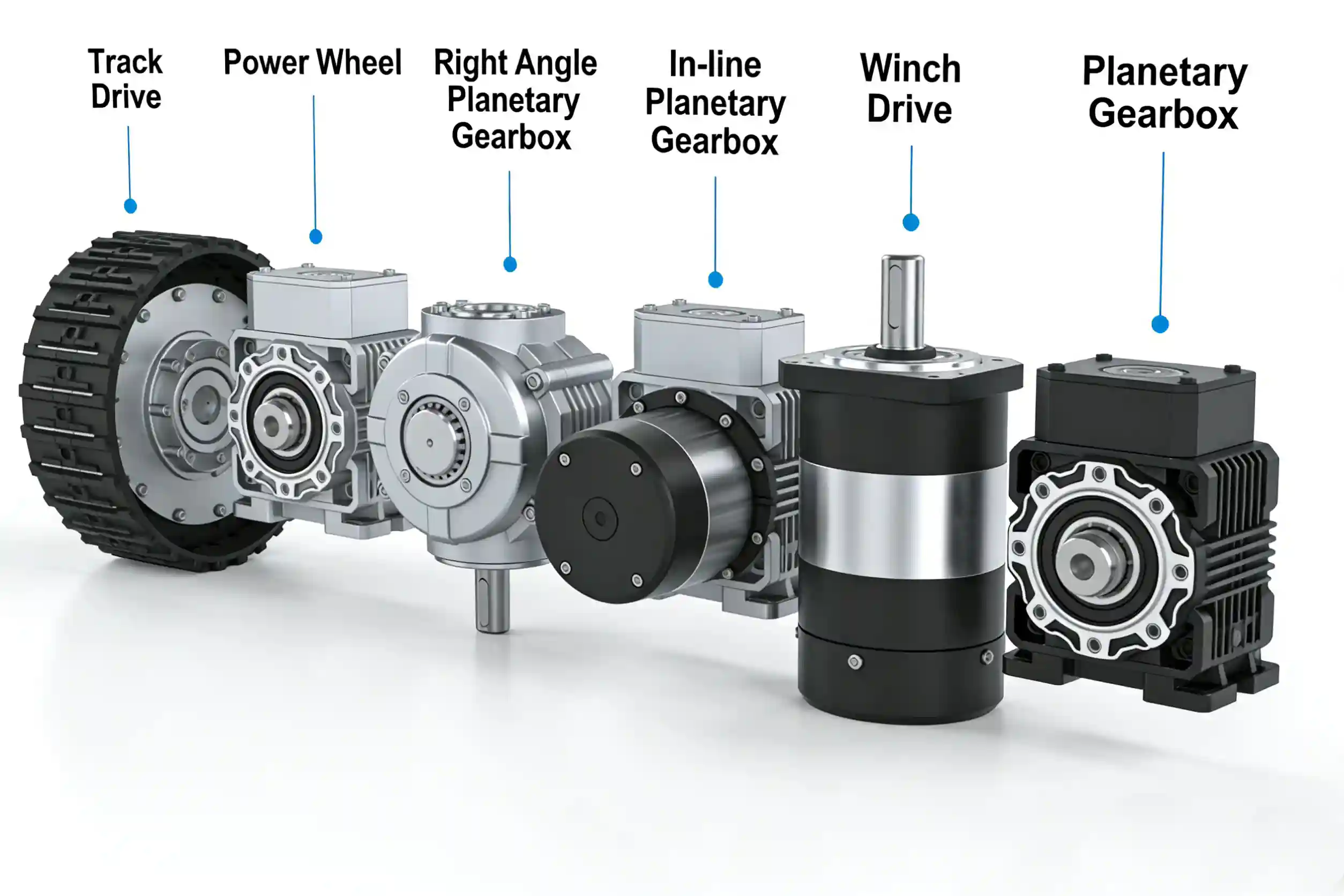

- Inline Planetary Gearbox: This type of gearbox has a coaxial input and output shaft, making it suitable for applications where space is limited.
- Right Angle Planetary Gearbox: This gearbox has a right angle input and output shaft arrangement, allowing for flexibility in design and installation.
- Orthogonal Shaft Planetary Gearbox: With its orthogonal input and output shafts, this gearbox provides efficient power transmission in a compact design.
- Steel Planetary Gearbox: Steel gearboxes are known for their high strength and durability, making them suitable for heavy-duty applications.
- Aluminum Planetary Gearbox: Aluminum gearboxes are lightweight and provide good resistance to corrosion, making them ideal for applications where weight is a concern.
- Composite Planetary Gearbox: Composite gearboxes offer a combination of strength and light weight, making them suitable for applications where both factors are important.
- Automotive: Planetary gearboxes are used in automotive transmissions for efficient power transmission.
- Aerospace: Planetary gearboxes are utilized in aerospace applications for their high precision and reliability.
- Industrial Robotics: Planetary gearboxes are commonly found in industrial robots, providing accurate movement and positioning.
- Wind Turbines: Planetary gearboxes are used in wind turbines to convert the low-speed rotation of the blades into high-speed rotation of the generator.
- Medical Equipment: Planetary gearboxes play a crucial role in medical equipment, ensuring precise and reliable operation.
- Increased demand for automation in various industries will drive the need for advanced planetary gearboxes.
- The growing renewable energy sector will create opportunities for planetary gearboxes in wind turbines and solar power systems.
- Advancements in material technology will lead to the development of more efficient and lightweight planetary gearboxes.
- Load Requirements: Determine the torque and speed requirements of your application to choose a gearbox that can handle the load.
- Ratio Selection: Select a gearbox with the appropriate gear ratio to achieve the desired output speed.
- Type of Gearbox: Choose the type of planetary gearbox that best suits your space and design requirements.
- Environmental Factors: Consider factors such as temperature, humidity, and contamination to ensure the gearbox can withstand the operating conditions.
- Maintenance and Durability: Evaluate the maintenance requirements and expected durability of the gearbox to ensure long-term reliability.
Yes, our gearbox can be customized according to your specifications. Our experienced design and development team will ensure that the gearbox meets your specific requirements.
All the content of this page is from the Internet and is only meant for reference purposes for product selection. Our products are replacement parts and not original spare parts. We are not the holder of the original trademarks mentioned in the content. Our replacement parts are designed to perfectly adapt to the original spare parts. If you need to buy original spare parts, please contact the original factory or supplier.
Performance Characteristics of Planetary Gearbox
Types and Characteristics of Planetary Gearbox
There are several types of planetary gearboxes, each with its own unique characteristics:
Advantages of Planetary Gearbox Made of Different Materials
Planetary gearboxes can be made of various materials, each offering its own advantages:
Application of Planetary Gearbox
The versatility of planetary gearboxes allows them to be used in various fields:
Future Development Trends and Opportunities
Planetary gearbox products have a promising future with the following development trends and opportunities:
Choosing a Suitable Planetary Gearbox
When selecting a planetary gearbox, consider the following aspects:
In summary, planetary gearboxes offer high torque transmission capabilities, high precision and efficiency, compact design, low backlash, and the ability to handle high speeds. There are different types of planetary gearboxes, each with its own characteristics. The choice of material in the gearbox affects its strength, weight, and corrosion resistance. Planetary gearboxes find applications in automotive, aerospace, industrial robotics, wind turbines, and medical equipment. The future of planetary gearbox products is promising, with opportunities in automation, renewable energy, and material advancements. When selecting a gearbox, consider load requirements, ratio selection, type of gearbox, environmental factors, maintenance, and durability.
Author: Dream
China Best Sales ZD High Performance High Quality Electric AC/DC Brush Or Brushless Gear Motor Planetary Gearbox Manufacture For Automation Solutions with Good quality
China Best Sales ZD High Performance High Quality Electric AC/DC Brush Or Brushless Gear Motor Planetary Gearbox Manufacture For Automation Solutions
Product Description
ZD Leader offers a wide range of micro motors for various industrial automation needs. Our product lines include DC Motors, AC Motors, Brushless Motors, Planetary Gear Motors, Drum Motors, Planetary Gearboxes, RV Reducers, and Harmonic Gearboxes, among others. With our technical expertise and customization capabilities, we provide outstanding application systems and flexible solutions to meet your specific requirements.
Model Selection
Our team of professional sales representatives and technical experts will assist you in selecting the most suitable model and transmission solutions based on your specific parameters.
Drawing Request
If you need more product parameters, catalogues, CAD or 3D drawings, please don’t hesitate to contact us.
On Your Need
We understand that every application is unique. Therefore, we offer the option to modify standard products or customize them to meet your specific needs.
Range Of Gear Motor
Please click the button below to view more detailed specifications:
Other Product Businesses
Our company specializes in supplying a wide range of high-quality industrial products. Some of our offerings include agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, roller chains, pulleys, planetary gearboxes, timing pulleys, bushings, and more. We take pride in providing products of the highest quality, competitive prices, and exceptional customer service. We also welcome customization requests for drawings and samples.
Frequently Asked Questions (FAQs)
1. Can I modify the standard products to meet my specific requirements?
Yes, we offer the flexibility to modify our standard products or customize them according to your specific needs.
2. How can I request additional product information or drawings?
If you require more product parameters, catalogues, CAD or 3D drawings, please feel free to contact us, and our team will be happy to assist you.
3. Do you provide support in selecting the right model and transmission solutions?
Absolutely! Our professional sales representatives and technical team are here to guide you in choosing the most suitable model and transmission solutions based on your specific parameters.
4. What industries can benefit from your gear motors?
Our gear motors find applications in various industries, including but not limited to automation, robotics, industrial machinery, medical equipment, and automotive.
5. What sets your company’s products apart from others in the market?
At ZD Leader, we prioritize high quality, competitive prices, and exceptional customer service. Our products undergo rigorous testing to ensure superior performance and reliability. Additionally, we offer customization options to meet unique requirements and provide comprehensive support throughout the entire process.
All the content of this page is from the Internet and is only meant for reference purposes for product selection. Our products are replacement parts and not original spare parts. We are not the holder of the original trademarks mentioned in the content. Our replacement parts are designed to perfectly adapt to the original spare parts. If you need to buy original spare parts, please contact the original factory or supplier.
Performance Characteristics of Planetary Gearbox
- High torque transmission capabilities: Planetary gearboxes offer excellent torque transmission due to their design.
- High precision and efficiency: The arrangement of gears in a planetary gearbox allows for efficient power transmission with minimal loss.
- Compact and lightweight: Planetary gearboxes have a compact design and are lightweight, making them suitable for various applications.
- Low backlash: Planetary gearboxes have low backlash, ensuring precise movement and positioning.
- Ability to handle high speeds: Planetary gearboxes can handle high input and output speeds, making them versatile for different applications.
Types and Characteristics of Planetary Gearbox
There are several types of planetary gearboxes, each with its own unique characteristics:
- Inline Planetary Gearbox: This type of gearbox has a coaxial input and output shaft, making it suitable for applications where space is limited.
- Right Angle Planetary Gearbox: This gearbox has a right angle input and output shaft arrangement, allowing for flexibility in design and installation.
- Orthogonal Shaft Planetary Gearbox: With its orthogonal input and output shafts, this gearbox provides efficient power transmission in a compact design.
Advantages of Planetary Gearbox Made of Different Materials
Planetary gearboxes can be made of various materials, each offering its own advantages:
- Steel Planetary Gearbox: Steel gearboxes are known for their high strength and durability, making them suitable for heavy-duty applications.
- Aluminum Planetary Gearbox: Aluminum gearboxes are lightweight and provide good resistance to corrosion, making them ideal for applications where weight is a concern.
- Composite Planetary Gearbox: Composite gearboxes offer a combination of strength and light weight, making them suitable for applications where both factors are important.
Application of Planetary Gearbox
The versatility of planetary gearboxes allows them to be used in various fields:
- Automotive: Planetary gearboxes are used in automotive transmissions for efficient power transmission.
- Aerospace: Planetary gearboxes are utilized in aerospace applications for their high precision and reliability.
- Industrial Robotics: Planetary gearboxes are commonly found in industrial robots, providing accurate movement and positioning.
- Wind Turbines: Planetary gearboxes are used in wind turbines to convert the low-speed rotation of the blades into high-speed rotation of the generator.
- Medical Equipment: Planetary gearboxes play a crucial role in medical equipment, ensuring precise and reliable operation.
Future Development Trends and Opportunities
Planetary gearbox products have a promising future with the following development trends and opportunities:
- Increased demand for automation in various industries will drive the need for advanced planetary gearboxes.
- The growing renewable energy sector will create opportunities for planetary gearboxes in wind turbines and solar power systems.
- Advancements in material technology will lead to the development of more efficient and lightweight planetary gearboxes.
Choosing a Suitable Planetary Gearbox
When selecting a planetary gearbox, consider the following aspects:
- Load Requirements: Determine the torque and speed requirements of your application to choose a gearbox that can handle the load.
- Ratio Selection: Select a gearbox with the appropriate gear ratio to achieve the desired output speed.
- Type of Gearbox: Choose the type of planetary gearbox that best suits your space and design requirements.
- Environmental Factors: Consider factors such as temperature, humidity, and contamination to ensure the gearbox can withstand the operating conditions.
- Maintenance and Durability: Evaluate the maintenance requirements and expected durability of the gearbox to ensure long-term reliability.
In summary, planetary gearboxes offer high torque transmission capabilities, high precision and efficiency, compact design, low backlash, and the ability to handle high speeds. There are different types of planetary gearboxes, each with its own characteristics. The choice of material in the gearbox affects its strength, weight, and corrosion resistance. Planetary gearboxes find applications in automotive, aerospace, industrial robotics, wind turbines, and medical equipment. The future of planetary gearbox products is promising, with opportunities in automation, renewable energy, and material advancements. When selecting a gearbox, consider load requirements, ratio selection, type of gearbox, environmental factors, maintenance, and durability.
Author: Dream
China Professional Simotics S-1FT7 Motor with Sp+ Planetary Gearbox air compressor CHINAMFG freight
China Professional Simotics S-1FT7 Motor with Sp+ Planetary Gearbox Air Compressor
The Simotics S-1FT7 motor is a permanent magnet synchronous motor that meets the most stringent demands on precision, dynamics, and speed setting range as well as on high degrees of protection and ruggedness. With highly compact dimensions, this motor is fitted with the latest encoder technology and is optimized for operation with fully digital drive and control systems. The motor offers natural, external, or water cooling, and maximum cooling can be achieved with water-cooling, which results in maximum performance.
Technical Parameters:
- Compact dimensions
- Highly precise
- Dynamic and speed setting range
- High degrees of protection and ruggedness
- Latest encoder technology
- Optimized for operation with fully digital drive and control systems
- Natural, external, or water cooling
- Maximum cooling can be achieved with water-cooling
Application:
The Simotics S-1FT7 motor is widely used in various industries, such as ceramic, glass, food, metallurgy, beer & drink, printing and dyeing, textile, petrochemical engineering, warehouse logistics, wood-working machine, environmental protection equipment, printing and packaging, pharmacy, and leather.
FAQ:
-
What is the minimum order quantity for this item?
Our minimum order quantity is 5PCS. For the first time cooperation, we accept a trial sample order.
-
What are your payment terms?
Our payment terms are 30% of contract value as deposit via T/T, 70% balance before shipment via T/T or L/C at sight.
-
What is the delivery time?
The delivery time is usually 30 days after deposit received.
-
How long is the warranty?
The warranty is 12 months from the leave port date.
-
Do you offer customizations?
Yes, customers are welcome to customize drawings and samples.
Our company mainly supplies various high-quality products for industrial use, such as agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, Roller chains, pulleys, planetary gearboxes, timing pulleys, bushings, etc. We offer preferential prices and considerate services to meet the needs of our customers.
All the content of this page is from the Internet and is only meant for reference purposes for product selection. Our products are replacement parts and not original spare parts. We are not the holder of the original trademarks mentioned in the content. Our replacement parts are designed to perfectly adapt to the original spare parts. If you need to buy original spare parts, please contact the original factory or supplier.
Performance Characteristics of Planetary Gearbox
- High torque transmission capabilities: Planetary gearboxes offer excellent torque transmission due to their design.
- High precision and efficiency: The arrangement of gears in a planetary gearbox allows for efficient power transmission with minimal loss.
- Compact and lightweight: Planetary gearboxes have a compact design and are lightweight, making them suitable for various applications.
- Low backlash: Planetary gearboxes have low backlash, ensuring precise movement and positioning.
- Ability to handle high speeds: Planetary gearboxes can handle high input and output speeds, making them versatile for different applications.
Types and Characteristics of Planetary Gearbox
There are several types of planetary gearboxes, each with its own unique characteristics:
- Inline Planetary Gearbox: This type of gearbox has a coaxial input and output shaft, making it suitable for applications where space is limited.
- Right Angle Planetary Gearbox: This gearbox has a right angle input and output shaft arrangement, allowing for flexibility in design and installation.
- Orthogonal Shaft Planetary Gearbox: With its orthogonal input and output shafts, this gearbox provides efficient power transmission in a compact design.
Advantages of Planetary Gearbox Made of Different Materials
Planetary gearboxes can be made of various materials, each offering its own advantages:
- Steel Planetary Gearbox: Steel gearboxes are known for their high strength and durability, making them suitable for heavy-duty applications.
- Aluminum Planetary Gearbox: Aluminum gearboxes are lightweight and provide good resistance to corrosion, making them ideal for applications where weight is a concern.
- Composite Planetary Gearbox: Composite gearboxes offer a combination of strength and light weight, making them suitable for applications where both factors are important.
Application of Planetary Gearbox
The versatility of planetary gearboxes allows them to be used in various fields:
- Automotive: Planetary gearboxes are used in automotive transmissions for efficient power transmission.
- Aerospace: Planetary gearboxes are utilized in aerospace applications for their high precision and reliability.
- Industrial Robotics: Planetary gearboxes are commonly found in industrial robots, providing accurate movement and positioning.
- Wind Turbines: Planetary gearboxes are used in wind turbines to convert the low-speed rotation of the blades into high-speed rotation of the generator.
- Medical Equipment: Planetary gearboxes play a crucial role in medical equipment, ensuring precise and reliable operation.
Future Development Trends and Opportunities
Planetary gearbox products have a promising future with the following development trends and opportunities:
- Increased demand for automation in various industries will drive the need for advanced planetary gearboxes.
- The growing renewable energy sector will create opportunities for planetary gearboxes in wind turbines and solar power systems.
- Advancements in material technology will lead to the development of more efficient and lightweight planetary gearboxes.
Choosing a Suitable Planetary Gearbox
When selecting a planetary gearbox, consider the following aspects:
- Load Requirements: Determine the torque and speed requirements of your application to choose a gearbox that can handle the load.
- Ratio Selection: Select a gearbox with the appropriate gear ratio to achieve the desired output speed.
- Type of Gearbox: Choose the type of planetary gearbox that best suits your space and design requirements.
- Environmental Factors: Consider factors such as temperature, humidity, and contamination to ensure the gearbox can withstand the operating conditions.
- Maintenance and Durability: Evaluate the maintenance requirements and expected durability of the gearbox to ensure long-term reliability.
In summary, planetary gearboxes offer high torque transmission capabilities, high precision and efficiency, compact design, low backlash, and the ability to handle high speeds. There are different types of planetary gearboxes, each with its own characteristics. The choice of material in the gearbox affects its strength, weight, and corrosion resistance. Planetary gearboxes find applications in automotive, aerospace, industrial robotics, wind turbines, and medical equipment. The future of planetary gearbox products is promising, with opportunities in automation, renewable energy, and material advancements. When selecting a gearbox, consider load requirements, ratio selection, type of gearbox, environmental factors, maintenance, and durability.
Author: Dream
China supplier Ab 60 Planetary Gearbox air compressor lowes
AB 60 Planetary Gearbox for Air Compressor at Lowes
The AB 60 Planetary Gearbox is a type of high-precision planetary gear reducer that is widely used in various industrial applications. It features a square flange helical bevel design and servo motor compatibility, making it ideal for reducing speed, improving torque, and matching inertia in industrial machinery.
Compared to other gear reducers, the AB 60 Planetary Gearbox offers high rigidity and precision, with single stage achieving less than 1 point of precision. It also boasts high transmission efficiency, up to 98%, and high torque/volume ratio. Additionally, it requires no maintenance and is highly reliable.
Product Specifications
Available models include PLF series, PLE series, ZPLF series, ZPLE series, AB series, ABR series, and many more. Gearing arrangement is planetary, with helical gears and 1 or 2 stage reduction ratios available. The gearbox has a rated torque of 14N.m-2000N.m, and a weight range of 0.5-48kg. Mounting position can be horizontal (foot mounted) or vertical (flange mounted).
Advantages of the Planetary Gearbox
- Low backlash
- High efficiency
- High torque
- High input speed
- High stability
- High reduction ratio
Applications
The AB 60 Planetary Gearbox is primarily used in industrial machinery, such as air compressors. It is commonly installed on stepper motors and servo motors to reduce speed, improve torque, and match inertia.
External Mounting Dimensions
1-stage reduction ratio: 3-10
2-stage reduction ratio: 15-100
FAQs
- What is a planetary gearbox?
- What are the advantages of a planetary gearbox?
- What applications are suitable for the AB 60 Planetary Gearbox?
- What is the maximum torque rating for the AB 60 Planetary Gearbox?
- What is the weight range of the AB 60 Planetary Gearbox?
Our company specializes in supplying various high-quality products for industrial use, including agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, roller chains, pulleys, planetary gearboxes, timing pulleys, bushings, and more. We offer competitive prices, customizable options, and attentive customer service.
All the content of this page is from the Internet and is only meant for reference purposes for product selection. Our products are replacement parts and not original spare parts. We are not the holder of the original trademarks mentioned in the content. Our replacement parts are designed to perfectly adapt to the original spare parts. If you need to buy original spare parts, please contact the original factory or supplier.
Performance Characteristics of Planetary Gearbox
- High torque transmission capabilities: Planetary gearboxes offer excellent torque transmission due to their design.
- High precision and efficiency: The arrangement of gears in a planetary gearbox allows for efficient power transmission with minimal loss.
- Compact and lightweight: Planetary gearboxes have a compact design and are lightweight, making them suitable for various applications.
- Low backlash: Planetary gearboxes have low backlash, ensuring precise movement and positioning.
- Ability to handle high speeds: Planetary gearboxes can handle high input and output speeds, making them versatile for different applications.
Types and Characteristics of Planetary Gearbox
There are several types of planetary gearboxes, each with its own unique characteristics:
- Inline Planetary Gearbox: This type of gearbox has a coaxial input and output shaft, making it suitable for applications where space is limited.
- Right Angle Planetary Gearbox: This gearbox has a right angle input and output shaft arrangement, allowing for flexibility in design and installation.
- Orthogonal Shaft Planetary Gearbox: With its orthogonal input and output shafts, this gearbox provides efficient power transmission in a compact design.
Advantages of Planetary Gearbox Made of Different Materials
Planetary gearboxes can be made of various materials, each offering its own advantages:
- Steel Planetary Gearbox: Steel gearboxes are known for their high strength and durability, making them suitable for heavy-duty applications.
- Aluminum Planetary Gearbox: Aluminum gearboxes are lightweight and provide good resistance to corrosion, making them ideal for applications where weight is a concern.
- Composite Planetary Gearbox: Composite gearboxes offer a combination of strength and light weight, making them suitable for applications where both factors are important.
Application of Planetary Gearbox
The versatility of planetary gearboxes allows them to be used in various fields:
- Automotive: Planetary gearboxes are used in automotive transmissions for efficient power transmission.
- Aerospace: Planetary gearboxes are utilized in aerospace applications for their high precision and reliability.
- Industrial Robotics: Planetary gearboxes are commonly found in industrial robots, providing accurate movement and positioning.
- Wind Turbines: Planetary gearboxes are used in wind turbines to convert the low-speed rotation of the blades into high-speed rotation of the generator.
- Medical Equipment: Planetary gearboxes play a crucial role in medical equipment, ensuring precise and reliable operation.
Future Development Trends and Opportunities
Planetary gearbox products have a promising future with the following development trends and opportunities:
- Increased demand for automation in various industries will drive the need for advanced planetary gearboxes.
- The growing renewable energy sector will create opportunities for planetary gearboxes in wind turbines and solar power systems.
- Advancements in material technology will lead to the development of more efficient and lightweight planetary gearboxes.
Choosing a Suitable Planetary Gearbox
When selecting a planetary gearbox, consider the following aspects:
- Load Requirements: Determine the torque and speed requirements of your application to choose a gearbox that can handle the load.
- Ratio Selection: Select a gearbox with the appropriate gear ratio to achieve the desired output speed.
- Type of Gearbox: Choose the type of planetary gearbox that best suits your space and design requirements.
- Environmental Factors: Consider factors such as temperature, humidity, and contamination to ensure the gearbox can withstand the operating conditions.
- Maintenance and Durability: Evaluate the maintenance requirements and expected durability of the gearbox to ensure long-term reliability.
In summary, planetary gearboxes offer high torque transmission capabilities, high precision and efficiency, compact design, low backlash, and the ability to handle high speeds. There are different types of planetary gearboxes, each with its own characteristics. The choice of material in the gearbox affects its strength, weight, and corrosion resistance. Planetary gearboxes find applications in automotive, aerospace, industrial robotics, wind turbines, and medical equipment. The future of planetary gearbox products is promising, with opportunities in automation, renewable energy, and material advancements. When selecting a gearbox, consider load requirements, ratio selection, type of gearbox, environmental factors, maintenance, and durability.
Author: Dream
China factory High Precision Low Backlash Spur or Helical Gear Planetary Speed Gear Reducer Gearbox for Servo Motor Steeping Motor with high quality
High Precision Low Backlash Spur or Helical Gear Planetary Speed Gear Reducer Gearbox for Servo Motor Steeping Motor
This product is a high-quality gearbox designed for use with servo and steeping motors. Its compact mechanical structure, light weight, and small volume make it easy to install and ideal for a wide range of applications, including the food and beverage industry, cement industry, packaging, construction materials, and chemicals. It offers a wide transmission rate and strong output torque, with smooth operation and lower noise or vibration.
Features
- Wide transmission rate, strong output torque
- Compact mechanical structure, light weight, small volume, and good heat-dissipating
- Smooth operation with lower noise or vibration
- Easy mounting, free linking, high efficiency
- Up to 96% transmission efficiency
- Perfect substitute for SEW and Transtecno products
Technical Data
| Model | Single unit versions | Power | Reduction ratio | Output torque | Gear material |
|---|---|---|---|---|---|
| SRC01, SRC02, SRC03, SRC04 | SRC-P IEC motor mounting, SRC-HS shaft mounting | 0.25 KW – 4 KW | 3.66 – 54 | 3.0 N.M – 500 N.M | 20CrMnTi with carburizing and quenching. The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm |
This product comes with a one-year warranty, subject to proper operation and installation. We also offer free technical support at all times.
Other Products We Offer
Our company mainly supplies various products for industrial use, such as agricultural gearboxes, power output shafts, sprockets, fluid couplings, worm gear reducers, gears and racks, roller chains, pulleys, planetary gearboxes, timing pulleys, bushings, etc. We pride ourselves on offering high-quality products at preferential prices, with considerate services. Customers are welcome to customize drawings and samples.
FAQs
- What is the transmission efficiency of this gearbox?
- What is the reduction ratio of this gearbox?
- What is the gear material used in this gearbox?
- Is this gearbox suitable for use with servo motors?
- What industries is this gearbox suitable for?
The gearbox offers up to 96% transmission efficiency.
The reduction ratio ranges from 3.66 to 54.
The gear material used in this gearbox is 20CrMnTi with carburizing and quenching. The hardness of the surface is 56-62HRC with a carbonized layer of 0.5-0.8mm.
Yes, this gearbox is specifically designed for use with servo motors and offers a wide transmission rate and strong output torque.
This gearbox is suitable for a wide range of industries, including the food and beverage industry, cement industry, packaging, construction materials, and chemicals.
All the content of this page is from the Internet and is only meant for reference purposes for product selection. Our products are replacement parts and not original spare parts. We are not the holder of the original trademarks mentioned in the content. Our replacement parts are designed to perfectly adapt to the original spare parts. If you need to buy original spare parts, please contact the original factory or supplier.
Performance Characteristics of Planetary Gearbox
- High torque transmission capabilities: Planetary gearboxes offer excellent torque transmission due to their design.
- High precision and efficiency: The arrangement of gears in a planetary gearbox allows for efficient power transmission with minimal loss.
- Compact and lightweight: Planetary gearboxes have a compact design and are lightweight, making them suitable for various applications.
- Low backlash: Planetary gearboxes have low backlash, ensuring precise movement and positioning.
- Ability to handle high speeds: Planetary gearboxes can handle high input and output speeds, making them versatile for different applications.
Types and Characteristics of Planetary Gearbox
There are several types of planetary gearboxes, each with its own unique characteristics:
- Inline Planetary Gearbox: This type of gearbox has a coaxial input and output shaft, making it suitable for applications where space is limited.
- Right Angle Planetary Gearbox: This gearbox has a right angle input and output shaft arrangement, allowing for flexibility in design and installation.
- Orthogonal Shaft Planetary Gearbox: With its orthogonal input and output shafts, this gearbox provides efficient power transmission in a compact design.
Advantages of Planetary Gearbox Made of Different Materials
Planetary gearboxes can be made of various materials, each offering its own advantages:
- Steel Planetary Gearbox: Steel gearboxes are known for their high strength and durability, making them suitable for heavy-duty applications.
- Aluminum Planetary Gearbox: Aluminum gearboxes are lightweight and provide good resistance to corrosion, making them ideal for applications where weight is a concern.
- Composite Planetary Gearbox: Composite gearboxes offer a combination of strength and light weight, making them suitable for applications where both factors are important.
Application of Planetary Gearbox
The versatility of planetary gearboxes allows them to be used in various fields:
- Automotive: Planetary gearboxes are used in automotive transmissions for efficient power transmission.
- Aerospace: Planetary gearboxes are utilized in aerospace applications for their high precision and reliability.
- Industrial Robotics: Planetary gearboxes are commonly found in industrial robots, providing accurate movement and positioning.
- Wind Turbines: Planetary gearboxes are used in wind turbines to convert the low-speed rotation of the blades into high-speed rotation of the generator.
- Medical Equipment: Planetary gearboxes play a crucial role in medical equipment, ensuring precise and reliable operation.
Future Development Trends and Opportunities
Planetary gearbox products have a promising future with the following development trends and opportunities:
- Increased demand for automation in various industries will drive the need for advanced planetary gearboxes.
- The growing renewable energy sector will create opportunities for planetary gearboxes in wind turbines and solar power systems.
- Advancements in material technology will lead to the development of more efficient and lightweight planetary gearboxes.
Choosing a Suitable Planetary Gearbox
When selecting a planetary gearbox, consider the following aspects:
- Load Requirements: Determine the torque and speed requirements of your application to choose a gearbox that can handle the load.
- Ratio Selection: Select a gearbox with the appropriate gear ratio to achieve the desired output speed.
- Type of Gearbox: Choose the type of planetary gearbox that best suits your space and design requirements.
- Environmental Factors: Consider factors such as temperature, humidity, and contamination to ensure the gearbox can withstand the operating conditions.
- Maintenance and Durability: Evaluate the maintenance requirements and expected durability of the gearbox to ensure long-term reliability.
In summary, planetary gearboxes offer high torque transmission capabilities, high precision and efficiency, compact design, low backlash, and the ability to handle high speeds. There are different types of planetary gearboxes, each with its own characteristics. The choice of material in the gearbox affects its strength, weight, and corrosion resistance. Planetary gearboxes find applications in automotive, aerospace, industrial robotics, wind turbines, and medical equipment. The future of planetary gearbox products is promising, with opportunities in automation, renewable energy, and material advancements. When selecting a gearbox, consider load requirements, ratio selection, type of gearbox, environmental factors, maintenance, and durability.
Author: Dream
