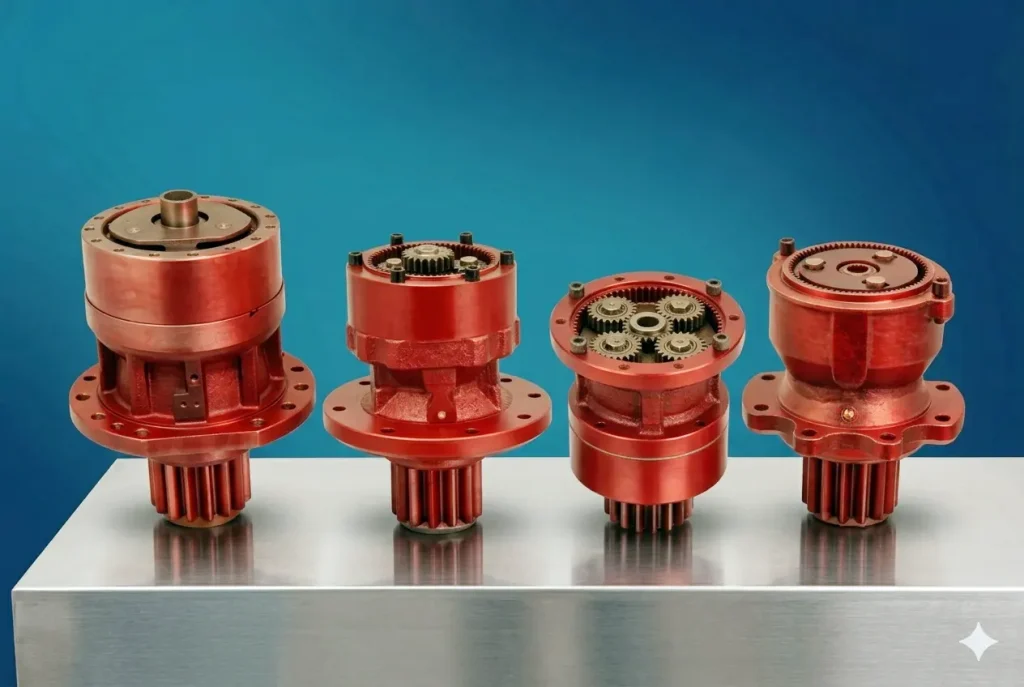

The CAT 320C and 320D swing gearbox — both catalogued under part number 148-4644 — is one of the most frequently sourced aftermarket swing drive components for Caterpillar excavators. The PC200-6 is the Komatsu benchmark; the CAT 320 is the Caterpillar equivalent in the 20-tonne class. This guide answers the question most buyers ask first: are the 320C and 320D units actually interchangeable? It also covers serial range verification, OEM vs aftermarket evaluation, sourcing logistics, and what to inspect during installation.
CAT 320C vs 320D: What Changed Between Generations?
The CAT 320C and 320D are successive generations of Caterpillar’s 20-tonne crawler excavator. The 320D introduced in 2006 brought a new engine (C6.4 ACERT), updated hydraulic controls, and improved cab ergonomics — but the swing drive system retained strong dimensional continuity with the 320C.
For the swing gearbox specifically, part number 148-4644 covers both models within certain serial ranges. However, “same part number” does not automatically mean every 320C and every 320D uses the same physical unit — production updates within a model generation can create dimensional or port-layout changes that the shared part number obscures.
- Engine: 3066T / C6.4 (transition)
- Swing gearbox: 148-4644 (confirm serial)
- Hydraulic swing motor: SAE B flange standard
- Weight class: 20.3–22t operating weight
- Engine: C6.4 ACERT (Tier 3/4i)
- Swing gearbox: 148-4644 (confirm serial)
- Hydraulic swing motor: SAE B flange standard
- Weight class: 20.0–21.5t operating weight
⚠️ Bottom line on interchangeability: The 148-4644 swing gearbox fits both 320C and 320D machines within specified serial ranges. However, you must verify your machine’s serial prefix before ordering — not all 320C and 320D serial ranges are covered by the same specification. Send your serial prefix and model to your supplier for a 4-hour confirmation.
Part Number 148-4644: Full Specification Overview
| Parameter | Details |
|---|---|
| Part Number | 148-4644 |
| Stock Code | 9201952 |
| Compatible Equipment | CAT 320C / 320D Excavator (primary) — 130+ models |
| Category | Construction Machinery Parts — Swing Motor Drive Reduction Gear |
| Application | Direct OEM replacement — no shimming or adaptor plates required |
| Condition | New |
| Quality Test | 100% no-load run-in + rated-torque bench test — signed report included |
| Warranty | 3 months from arrival date |
| MOQ | No minimum — emergency single-unit orders accepted |
| Lead Time (in stock) | 4–7 business days processing |
| Shipping Options | Sea (18–35 days) / Air freight (5–8 days) / DHL FedEx express |
| Trade Terms | EXW, FOB, CFR, CIF — Jiangmen Port, China |
Machines Covered: 130+ Models Beyond the 320C and 320D
While the 148-4644 swing gearbox is primarily associated with the CAT 320C and 320D, the compatible model list extends across multiple brands and weight classes. The table below gives a representative cross-section:
| Below 10t | 10–20t | 20–30t | 30–40t | 40t+ |
|---|---|---|---|---|
| E307B | E315 | E320C ✦ | E330 | DH420-7 |
| E70B-7 | EX120-5 | E320D ✦ | E330C | CE420-6 |
| EX60-2 | SK135 | E318C | E330D | EC460 |
| ZX75 / ZX85 | PC160-7 | DH225-7 | PC300-7 | PC400-6/7 |
| SK55 / SK60 | R130 / SH120 | PC200-6 / EC210 | SK330-8 / EC350 | — |
✦ Primary fit. For non-CAT models, confirm serial prefix with your supplier before ordering. Cross-brand dimensional equivalence is common but requires individual verification.
3 Questions to Ask Before Ordering Any CAT 320 Swing Gearbox
Whether you’re sourcing from a dealer or an aftermarket supplier, these three questions filter out poor-quality sources and prevent the most common ordering mistakes:
5 Failure Signs Specific to the CAT 320 Swing Drive
The CAT 320 series swing gearbox shares the same failure modes as other 20t-class excavator swing drives, but the 320C and 320D’s swing motor architecture means some symptoms present slightly differently:
A noticeable lag between joystick input and upper body movement, especially at the start of a swing cycle. Early-stage planetary wear.
A repeating knock or clunk that occurs at regular intervals during slow swing. Planet gear or carrier pin wear in the second reduction stage.
Silver or grey metallic particles in the swing motor case drain oil at service. Internal gear wear is at an accelerating stage — order replacement immediately.
Visible gear oil seeping from the output shaft lip seal area. Seal failure allows dirt ingress that rapidly accelerates internal wear.
The gearbox housing is excessively hot to touch after normal operating cycles. Bearing failure or contaminated oil causing friction-generated heat build-up.
Sourcing Guide: Lead Times and Shipping Options for Canada, Australia and Europe
| Destination | Sea Freight | Air Freight | DHL / Express |
|---|---|---|---|
| Canada | 20–28 days | 5–7 days | 3–5 days |
| Australia | 18–25 days | 5–8 days | 4–6 days |
| Europe (Hamburg / Rotterdam) | 28–35 days | 5–8 days | 3–5 days |
| USA | 22–30 days | 5–7 days | 3–5 days |
💡 Machine-down tip: Processing for in-stock units is 4–7 business days. For true machine-down emergencies, contact your supplier at time of order and request priority processing — most in-stock units can be handed to an air freight carrier within 48–72 hours. Specify your urgency level in the initial enquiry so the supplier can advise the fastest available route.
What to Replace at the Same Time as the 148-4644 Swing Gearbox
The 320C and 320D swing motor is particularly vulnerable to contamination from gearbox failure. When ordering the 148-4644 replacement, evaluate these two additional components:
Metal debris from internal gearbox failure enters the swing motor case drain within 1–2 hours of continued operation. After draining and inspecting the case drain oil, if particles are confirmed, order a replacement swing motor with the gearbox. Both are available from the same supplier — ask for a combined quote and confirm they can ship together.
Complete set: output shaft lip seal, input shaft seal, internal O-ring set, and the swing post output bearing. All four are accessible only when the gearbox is removed. Replace all four as a matter of course every time a new swing gearbox is installed — this eliminates the most common cause of repeat removal within 12 months.
Order CAT 320C / 320D Swing Gearbox 148-4644 — Quote in 24 Hours
Send your machine serial prefix, model (320C or 320D), quantity, and preferred shipping method. We confirm fit, availability, and pricing within 24 business hours. In-stock units process in 4–7 days. Air freight and express options available for machine-down emergencies. Every unit ships with a signed load test report and video inspection record.
✓ Fits 320C & 320D + 130 Other Models
✓ No MOQ · Ships to Canada, Australia, EU, USA
✓ 3-Month Warranty from Arrival Date
