Mixer Truck Planetary Gearbox: Why the Concrete Transit Drum Drive Fails When and How It Does
The mixer truck planetary gearbox on a concrete transit mixer operates in one of the most mechanically and chemically aggressive environments in the commercial vehicle industry. Understanding the operating cycle — and why each phase creates a different stress on the gearbox — is the foundation of correct replacement selection.

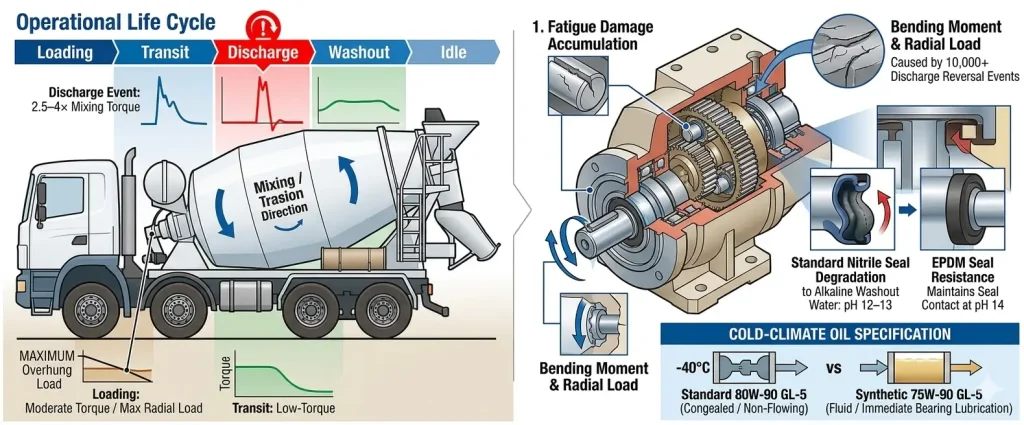

Phase Analysis — Where the Gearbox Damage Actually Accumulates
Most technicians assume that the transit phase — the longest phase in the mixer truck’s daily cycle — is the most damaging to the concrete transit mixer drum drive gearbox. This is incorrect. The transit phase runs at low speed (1–4 RPM) with a partially loaded drum and relatively smooth continuous torque. The gearbox barely notices the transit phase compared to the other two high-stress phases.
The discharge phase is the most damaging phase for the mixer truck planetary gearbox. The drum reverses direction at maximum speed (10–14 RPM) against the full weight of partially set concrete (5–8 tonnes) acting as an inertial resistance to direction change. Each discharge event produces a torque reversal spike of 2.5–4× the steady-state mixing torque. A mixer truck delivering 8–12 loads per shift executes 8–12 of these reversal events per day, 250 days per year. Over a 5-year truck life, this accumulates 10,000–15,000 high-torque reversal events — the primary driver of planet carrier pin bearing fatigue in the mixer drum drive gearbox.
The loading phase at the batching plant runs the drum at 3–6 RPM forward — the highest sustained speed in the forward direction. The full-charged drum weight (up to 8 tonnes of concrete) loads the drum support bearings and transmits through the drum mounting to the output shaft of the mixer gearbox. The loading phase torque is moderate compared to discharge, but the radial load on the gearbox output shaft is at its maximum — the fully loaded drum weight creates a bending moment on the gearbox output interface that must be within the gearbox’s overhung load rating.
Despite being the longest phase, the transit phase produces relatively low gearbox stress: the drum rotates slowly at 1–4 RPM to prevent segregation, the concrete is still fluid (lower resistance), and there are no torque reversals. The gearbox oil temperature rises moderately during transit — road vibration transmitted through the truck frame to the drum support creates cyclic loads on the gearbox housing, but these are well below fatigue thresholds for correctly specified units. Transit phase contributes less than 15% of total accumulated gearbox fatigue damage over a typical truck service life.
The Washout Phase — Why Cement Alkalinity Destroys Standard Seals
After each delivery, the mixer drum is washed out with water to prevent concrete hardening inside the drum. The washout water — a suspension of cement, sand, and calcium hydroxide (pH 12–13) — splashes across all external drum components including the hydraulic mixer drum gearbox output shaft seal area. This highly alkaline water attacks standard nitrile seals more aggressively than most industrial environments — nitrile swells and softens in sustained alkaline exposure, and once swollen, the seal lip no longer forms an adequate contact with the shaft surface.
The practical consequence: a ready mix truck planetary gearbox fitted with standard nitrile output shaft seals typically shows first seal weeping within 2–3 years of service — not because the seal has worn through, but because the alkaline washout water has chemically degraded the seal lip to the point where it cannot maintain adequate contact force. EPDM seals are the correct specification for mixer truck drum gearboxes — EPDM is chemically resistant to alkalis at pH 14, the highest cement washout concentration encountered in practice.
For the broader context of how transit mixer gearboxes compare to stationary concrete plant mixer drives in terms of reversal frequency and chemical exposure, see our concrete mixer planetary gearbox guide. For the right-angle configuration used on most medium and large mixer trucks (motor input perpendicular to drum axis), see our right angle planetary gearbox selection guide covering module, ratio, and mounting configuration options.
Mixer Truck Drum Drive Gearbox Replacement — What to Confirm Before Ordering
The mixer truck drum reducer replacement market is complicated by the large number of truck and drum combinations in service. The drum manufacturer (McNeilus, London Concrete, Rex Industries, Schwing-Stetter, Putzmeister) specifies the drum drive independently of the truck chassis — a single Mack Granite chassis may be fitted with drums from three different manufacturers, each requiring a different gearbox. The correct identification sequence is: (1) confirm the drum manufacturer from the drum body nameplate (separate from the truck chassis plate); (2) photograph the existing gearbox nameplate; (3) note the drum diameter and volume capacity from the drum nameplate. These three items together identify the correct replacement in all but the oldest non-standard drum configurations.
The Putzmeister mixer gearbox and Schwing-Stetter drum drives are the two most commonly requested aftermarket replacements in the Australian and Canadian ready-mix markets. Both use right-angle planetary reducers in the 8,000–20,000 Nm output torque range with EPDM seals and a specific hydraulic motor flange configuration. Provide the drum manufacturer name, drum volume (in cubic metres or cubic yards), and gearbox nameplate photo — we confirm the correct replacement and return a quotation within 24 hours.
Mixer Truck Drum Drive Gearbox — EPDM Seals Standard. Quoted in 24 Hours.
Drum manufacturer, volume, gearbox nameplate photo. We confirm the correct unit with EPDM seals and return price + lead time within 24 hours. Air freight to Australia and Canada in 5–8 days. MOQ 1 unit.
Get a Mixer Truck Gearbox Quote →
📧 [email protected] · Canada Planetary Gear Drive Co., Ltd · ISO 9001:2015
Related Searches
mixer truck planetary gearbox · concrete transit mixer drum drive gearbox · mixer truck drum reducer replacement · ready mix truck planetary gearbox · Putzmeister mixer gearbox
Drum Drive Gearbox Oil Specification for Cold-Climate Ready-Mix Operations
In Canadian winter conditions, ready-mix concrete trucks face the same cold-start oil viscosity problem as any other commercial vehicle with gear oil in exposed gearboxes. The mixer drum drive gearbox is mounted on the truck body, exposed to ambient temperatures as low as −40°C during winter overnight parking. The standard SAE 80W-90 GL-5 gear oil in the drum drive gearbox congeals at −35°C — it does not flow adequately to the planet carrier bearings when the truck starts and the hydraulic system is first engaged to rotate the drum at the batch plant.
The standard operating procedure at Canadian ready-mix batching plants is to keep trucks in heated garages overnight during winter — but this is not always practical at smaller operations. For trucks that are regularly exposed to overnight temperatures below −25°C, synthetic 75W-90 gear oil is the correct specification for the drum drive gearbox. The 75W grade maintains pumpable viscosity to −40°C, ensuring immediate bearing lubrication from first drum rotation regardless of ambient temperature. The H1 NSF-registered version of this synthetic grade is available for food-grade applications; the standard GL-5 version is appropriate for concrete mixer trucks without food contact requirements.
For the complete range of mixer truck drum drive gearboxes and the right-angle configuration selection guide relevant to most mixer drum applications, see our right angle planetary gearbox selection guide. This covers the bevel-helical and spur-bevel right angle configurations, output shaft options, and the motor flange standards most commonly encountered in North American and Australian mixer truck hydraulic motor specifications.
Avoiding the Most Expensive Replacement Mistake — Getting the Specification Right the First Time
The most expensive replacement gearbox is one that is ordered, shipped by air freight, installed — and then found to be dimensionally incorrect due to a production year change, a market specification variant, or a nameplate misread. In the large excavator and heavy equipment categories, air freight alone can add $800–$2,500 to the replacement cost, and a second incorrect part requires that entire cost to be paid again. Most incorrect-part situations are preventable by sending three items at the time of enquiry: the machine serial number or serial prefix, a clear photograph of the gearbox nameplate, and a photograph of the motor-to-gearbox flange interface.
These three items take under 10 minutes to collect on-site but eliminate the generation mismatch, market variant, and flange configuration errors that account for the majority of incorrect-part returns in the aftermarket swing and industrial gearbox segment. We return a confirmed part match with a dimensional drawing before any order is placed — giving the site maintenance manager the opportunity to verify the drawing against the existing unit before committing to the order. This process adds at most 4 hours to the procurement timeline and removes the risk of the much longer delay caused by an incorrect part arriving on-site.
For all enquiries across the complete product range — swing gearboxes, inline planetary drives, right angle reducers, and S series heavy industrial units — this same confirmation process applies. Send the three items described above to [email protected] and receive a confirmed dimensional match, load test certification scope, and formal quotation within 4–24 hours depending on the application complexity.
