Swing Gearbox for Excavator Volvo VOL140 — Replacement Unit
High-performance swing gearbox for excavator Volvo OEM-fit replacement with precise dimensional match, 3-stage planetary design, and 100% load testing. Built for 14-ton class excavators, ensuring reliable torque output, smooth rotation, and long service life in demanding jobsite conditions.
What Is a Slewing Gearbox — and Its Role in an Excavator
A slewing gearbox — also known as a swing gearbox or swing reduction gearbox — is a planetary gear unit positioned between the hydraulic swing motor and the slew ring on the excavator's upper structure. The hydraulic motor delivers high rotational speed at relatively low torque. The slewing gearbox steps that speed down at a fixed ratio and multiplies the torque proportionally, producing the slow, high-force rotation that turns the upper structure during the swing cycle.
The slewing gearbox's output pinion meshes directly with the internal teeth of the slew ring on the undercarriage. This mesh is machine-specific: the output pinion tooth count and module must match the slew ring exactly. A gearbox with an incorrect output pinion — even if the external housing dimensions appear identical — will cause abnormal tooth loading, rapid ring gear wear, and potential upper structure lockup within 100–200 operating hours. This is why Volvo EC140 serial number confirmation before ordering is mandatory, not optional.
Compatibility & Parameters — Volvo VOL140
Our slewing gearbox is compatible with the Volvo VOL140 excavator. Before purchasing, confirm the following parameters from the existing gearbox nameplate:
| Parameter | Description |
|---|---|
| Excavator Model | Volvo VOL140 |
| Swing Gearbox Ratio | 9.0 — confirm from nameplate before ordering |
| Rated Torque | 21,000 Nm — confirm from nameplate before ordering |
Send your EC140 serial number for written confirmation within 4 hours. Values above are reference specifications — verify from existing nameplate before ordering.
Compatible Models
- ✓ Volvo EC140 · EC140 LC (original)
- ⚠ Hitachi
- ⚠ Komatsu
Cross-brand refs require serial confirmation. Brand names for reference only.
Technical Specifications
| Parameter | Value / Details |
|---|---|
| Applicable Excavator Model | Volvo 140 |
| Part Reference Numbers | VOE14540907 (EC140) · 14541064 (EC140B) |
| Machine Operating Weight | Approx. 13,800 – 15,400 kg (varies by configuration) |
| Swing Gearbox Type | 3-Stage Planetary Reduction |
| Swing Gearbox Ratio | Confirm from existing unit nameplate (typically ~16–20:1) |
| Gear Housing Material | Ductile iron (steel housing available on request) |
| Gear Oil Grade | SAE 80W-90 GL-5 (unit ships without oil — fill before commissioning) |
| Certification & Testing | ISO 9001:2015 · CE · 100% individual load test · Signed certificate per unit |
Key Features — VOL140 Swing Gearbox Excavator Replacement
We maintain a cross-reference database covering all EC140 generations. Send the machine serial number (first 7 characters) and we return the correct part number, dimensional drawing, and a written confirmation within 4 hours — before any purchase commitment is required.
The EC140's 3-stage planetary gearbox delivers substantially higher swing torque per unit volume than a 2-stage design. All three planetary stages use needle roller bearings on case-hardened pins for even load distribution and extended service life.
Every VOL140 unit is bench-tested to full rated swing torque before shipment. Signed individual test certificate included in shipping documentation. Satisfies ISO 9001 procurement audit requirements without a separate test request.
Emergency air freight to Canada, Australia, and Europe in 5–8 business days. Standard sea freight 18–35 days for planned orders. EXW, FOB, CFR, CIF from Jiangmen, China.
Installation Location & Method
Follow these steps in sequence. Do not skip pre-installation inspections — they prevent the most common causes of early failure after replacement.

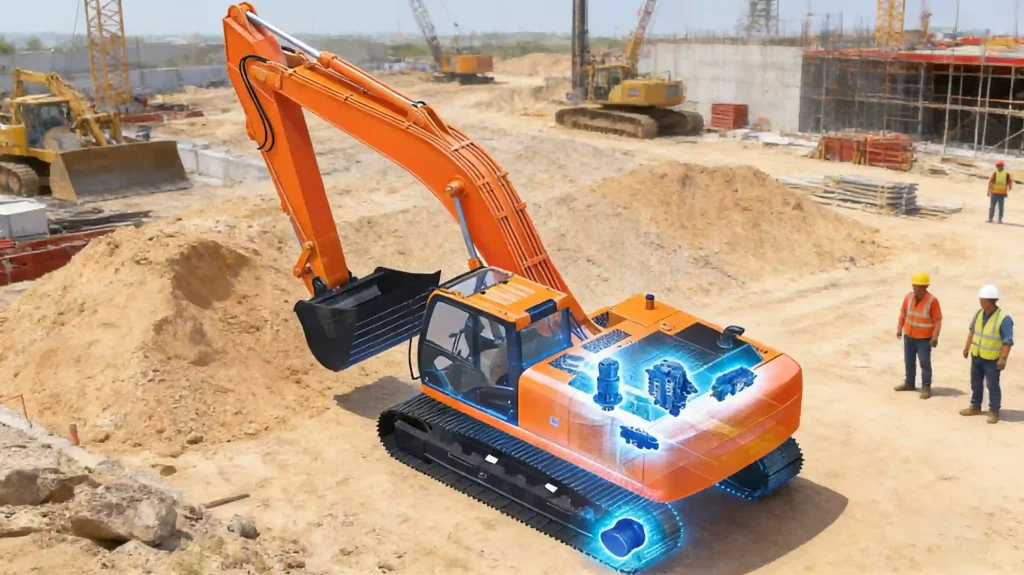

The EC140 swing gearbox is mounted centrally on the revolving upper frame, directly above the slew ring. It sits between the hydraulic swing motor (mounted on top of the gearbox input flange) and the slew ring pinion gear (at the bottom of the gearbox output shaft). Access requires removing the upper frame side covers and, on many EC140 configurations, partially removing the cab step or tool storage box on the swing side. The gearbox is secured to the upper frame by 6 high-strength mounting bolts arranged in a circular bolt pattern.
- Relieve hydraulic pressure — shut down the engine, cycle all controls to release stored pressure before disconnecting any hydraulic lines.
- Drain the old gearbox oil — collect and inspect for metallic chips before discarding. Chips = inspect the swing motor case drain too.
- Disconnect the swing motor — cap all hydraulic ports immediately to prevent contamination.
- Remove the 6 mounting bolts and lift out the failed gearbox with a suitable hoist or lifting strap rated for the gearbox weight (approximately 90–110 kg for EC140).
- Clean the mounting face on the upper frame — remove all old gasket material, thread debris, and corrosion.
- Lower the new gearbox and engage the output pinion with the slew ring manually before applying any bolt torque. Confirm smooth, binding-free mesh throughout 360° of rotation.
- Torque the 6 mounting bolts to specification (refer to EC140 service manual — typically 270–320 Nm for this bolt class). Use a calibrated torque wrench, not an impact driver.
- Reconnect the swing motor and all hydraulic lines. Fill the new gearbox with SAE 80W-90 GL-5 gear oil to the sight glass centre mark before starting the engine.
- Function test — swing left and right at low speed for 5 minutes before applying full swing load. Check for leaks at all connections.
- First oil change at 200 hours — flush the run-in oil which contains metal particles from the gear surface conditioning period.
Daily & Periodic Maintenance Guide — EC140 Swing Gearbox
Proper maintenance directly determines service life. An EC140 swing gearbox that is correctly maintained typically lasts 8,000–12,000 hours. The same unit neglected on oil changes commonly fails at 3,000–5,000 hours. These tasks take under 15 minutes per service interval.
| Interval | Task | Details |
|---|---|---|
| Daily (pre-shift) | Visual inspection | Check for oil seepage around the input shaft seal and output shaft seal. Any visible oil on the gearbox housing surface below the seals indicates a developing seal failure. Address within the next planned maintenance window — do not defer more than 250 hours after first detection. |
| Daily (pre-shift) | Listen for abnormal noise | Swing the machine left and right at normal working speed with no load. A consistent low hum is normal. Grinding, clicking, or a new tonal noise that was not present previously indicates developing internal wear. Report and schedule inspection. |
| Every 250 hours | Check oil level | Check gear oil level at the sight glass or level plug with the machine on level ground and engine off. Oil level should be at the centre of the sight glass. An unexplained level drop of more than 100 ml between 250-hour intervals indicates a seal leak that requires investigation. |
| Every 250 hours | Inspect breather valve | Clean or replace the housing breather valve. A blocked breather builds internal pressure that forces oil past the shaft seals — the resulting "seal failure" is actually a blocked-breather problem. Clean with compressed air or replace if the filter element is saturated. |
| Every 1,000 hours | Gear oil change | Drain while warm. Inspect drain plug magnet — fine grey silt is normal; chips or flakes require investigation. Refill with SAE 80W-90 GL-5. Shorten to 500-hour intervals in high-ambient-temperature environments (>35°C) or high swing duty (>70% of operating hours in active swing). |
| Every 2,000 hours | Seal inspection | Inspect input and output shaft seals for hardening, cracking, or deformation. Replace proactively at 2,000-hour intervals rather than waiting for visible leakage — the labour cost of a seal replacement during a planned shutdown is significantly lower than an emergency replacement during a machine-down event. |
Frequently Asked Questions
Verified Customer Reviews
"We maintain a fleet of 12 EC140B machines on a civil infrastructure project in Ontario. The first VOL140 swing gearbox we ordered was confirmed by serial within 4 hours, shipped by air, and arrived in 7 days. Perfect fit. We've since ordered 4 more. Lead time is predictable, the certificates are there every time, and the price is 40% below our previous supplier. What else do you need?"
"My EC140B stopped swinging on a Thursday. I emailed the part number and serial at 8am Friday. By Friday afternoon I had a confirmed match, a dimensional drawing, and a price. Air freight arrived the following Wednesday. My EC140B was back to full operation by Thursday afternoon. That is 6 working days from failure to fixed. I expected at least 3 weeks. I told my boss it was 2 weeks. He was impressed. I said nothing."
