Paper Machine Planetary Gearbox: Drive Requirements Through the Full Machine From Wet End to Reel

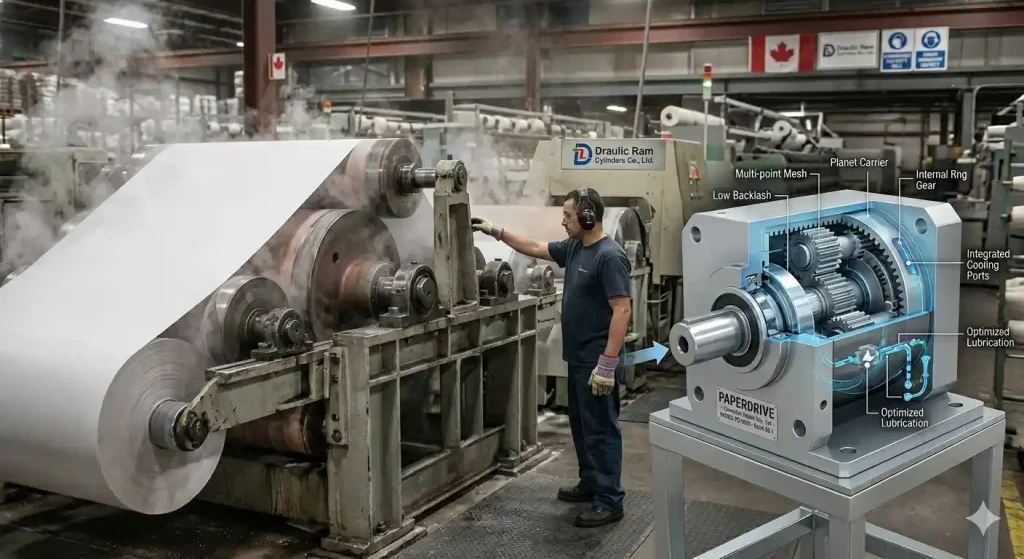

The paper machine planetary gearbox appears at every driven section of a Fourdrinier or gap former paper machine — from the breast roll at the wire section to the pope reel at the dry end. No two sections have the same speed profile, torque requirement, or failure consequence. Understanding the machine section-by-section is the starting point for any paper mill drive gearbox specification or replacement. Below we follow the paper web through the full machine, identifying the drive requirements at each stage and the gearbox specification needed to meet them.

The wire section carries the forming fabric (wire) at the paper machine’s nominal production speed — typically 400–2,000 metres per minute for newsprint and packaging grades. The drive gearboxes at the breast roll, drive rolls, and couch roll must maintain synchronised speed across the full width of the machine (3–10 metres) to prevent uneven draw in the paper web. Speed variation between adjacent driven rolls of more than 0.1% creates a tension differential that results in web breaks — the most costly production interruption on a paper machine. A single web break costs an integrated paper mill between $10,000 and $50,000 in lost production and restart waste, making drive precision a direct profit driver.

The torque requirement at each wire section roll drive is moderate (5,000–30,000 Nm depending on roll diameter and machine width) but the speed stability requirement is severe. The gearbox ratio must be precise and consistent across all units — meaning that all roll gearboxes at a given machine section must have identical ratios to within 0.05% to allow the master speed control system to maintain synchronisation without continuous correction. This requires CNC-ground planetary gear sets with final assembly matching, not mass-produced interchangeable gearboxes.

The press section planetary reducer drives the press rolls that remove water from the wet paper web under mechanical nip pressure — typically 100–400 kN/m of nip width. At a 6-metre-wide paper machine with 300 kN/m nip loading, the nip force on a single press roll exceeds 1,800 kN. This force must be reacted by the roll bearings and transmitted through the drive gearbox at full machine speed. The combination of high torque and extreme radial load from the roll weight plus nip reaction defines the output shaft bearing requirement.

The press section gearbox operates at the highest combined torque and radial load of any position on the machine. The roll diameter (typically 600–900 mm) and the nip loading together determine the output shaft torque — typically 50,000–200,000 Nm for full-width modern machines. At this torque class, the paper roll drive planetary gearbox must document combined overhung load (from the roll weight and nip reaction force) alongside the torsional torque, as these two loads acting simultaneously define the output shaft bearing life. A press gearbox specified only on torque will fail prematurely from output bearing fatigue.

Press section drives also require a soft-start capability — the press roll must accelerate smoothly from stationary through nip loading to full machine speed to avoid crushing or sheet delamination in the early stages of the run. The drive gearbox must accept the soft-start current profile from the motor’s inverter without resonance or speed hunting that would show as a periodic mark on the paper web (visible as “press bounce” marks in the finished sheet).

The dryer section is the longest physical section of the paper machine — a modern newsprint machine may have 70–100 dryer cylinders, each driven by an individual or group drive gearbox. The dryer cylinders are heated by steam at 120–160°C, and the gearbox housings adjacent to the cylinder faces experience elevated ambient temperatures of 50–80°C. This high-temperature operating condition — at 80°C ambient combined with self-heating from gear friction — can push the gearbox housing to 100°C+ under sustained full-speed operation, requiring synthetic gear oil (PAO or PAG) as the standard specification rather than mineral oil.

Dryer section gearboxes also face steam condensate exposure at the housing seal — steam condensing on the cooler gearbox housing surface creates a continuous water film around the shaft seal. Standard nitrile seals (NBR) degrade rapidly under this simultaneous high-temperature and moisture exposure, hardening and cracking within 12–18 months of service. FKM (Viton) seals are the correct specification for dryer section gearboxes operating adjacent to steam-heated cylinders, providing a service life of 5+ years in the same conditions. All gearboxes we supply for dryer section applications are pre-filled with ISO VG 460 synthetic oil and fitted with FKM rotary shaft seals as standard.

The calender drive gearbox paper drives the calender rolls that give the finished paper its surface smoothness and gloss. In soft nip calendering, a polymer-covered roll engages a hard steel roll under moderate pressure; in supercalenders and machine glazing calenders, many rolls are stacked and the combined nip pressure is higher. The calender is the last driven section before the reel, operating at full machine speed. Any drive irregularity at the calender section — speed oscillation, torque ripple, or vibration — is transferred directly to the finished paper surface with no subsequent processing to correct it.

The calender drive gearbox specification must account for the paper machine’s full speed range — modern high-speed tissue machines can run at 2,000 m/min, which means the calender roll at 800 mm diameter rotates at approximately 800 RPM. At this speed, the gearbox input shaft (connected to the drive motor through a ratio reduction) operates at several thousand RPM, and the gearbox’s noise and vibration behaviour at this speed must be confirmed — high-speed operation amplifies gear mesh harmonics that are not audible at low speeds. We provide vibration test reports (ISO 10816-3 compliant) for all calender drive gearboxes to confirm that the unit will not introduce visible calender barring marks in the finished paper.

Tissue Machine Gearbox — Creping Cylinder Drive Requirements

The tissue machine gearbox has one drive position unique to tissue manufacturing: the Yankee cylinder drive. The Yankee is a large-diameter (4–6 metre) steam-heated cylinder that dries the tissue web to approximately 95% dryness before the creping doctor blade removes the web from the cylinder surface. The Yankee drive gearbox must deliver 200,000–600,000 Nm of output torque at very low speed (3–8 RPM) — one of the highest torque, lowest speed planetary gearbox applications in the paper industry. At these low speeds, the gearbox design must be specifically evaluated for boundary lubrication at the planet carrier bearings — at 3 RPM, the oil film thickness in the bearings is dramatically reduced compared to standard-speed gearboxes, requiring specialised bearing clearances and surface finishes.

The Yankee drive is also unique in that the torque varies cyclically with the position of the creping doctor blade — as the blade engages and releases the web across the width of the cylinder, the torque oscillates. This cyclic torque variation at the blade-passing frequency creates a dynamic load on the Yankee gearbox that must be explicitly modelled in the gearbox bearing fatigue life calculation. A Yankee gearbox sized only for the average torque without the cyclic variation will show premature output shaft bearing fatigue at the carrier pin positions most directly loaded during the peak torque phase of each blade-pass cycle. For tissue machine Yankee drives, we provide an explicit cyclic torque calculation as part of the gearbox specification.

For the highest-torque calender, pope reel, and Yankee positions (50,000–600,000 Nm), our S series planetary gearbox covers the full range with steam condensate and high-temperature seal options, plus the output bearing capacity required for press roll radial loads. For mid-range dryer section and wire section drives in the 5,000–50,000 Nm class, the 311 series planetary gearbox provides the multi-frame options required for the wide range of speeds and torques across a single paper machine, with ratio options from 12:1 to 125:1. Contact us with the machine section, roll diameter, and paper machine speed for a confirmed gearbox recommendation within 24 hours, including a combined load calculation (torque + radial load) for press and calender positions.
