Planetary Gearbox Efficiency: What 97% Really Means — and Where the Other 3% Goes

Suppliers quote planetary gearbox efficiency as a single percentage — typically 96–98% per stage. This article explains what that number means in practice, where the power loss actually occurs, and which operating conditions reduce efficiency below the catalogue value. For any application where motor sizing or heat management matters, understanding the efficiency calculation is not optional.

What “97% Efficiency” Actually Means

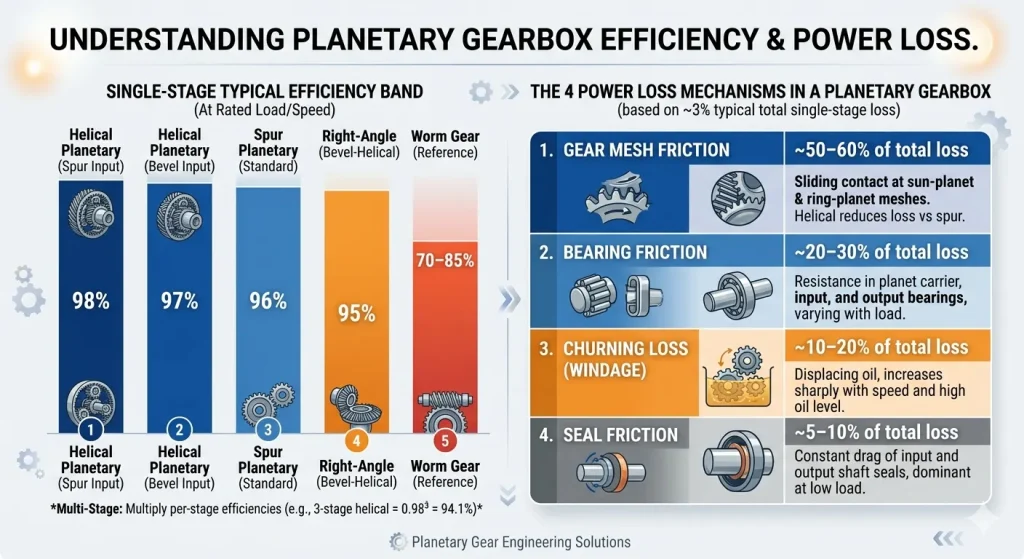

Efficiency by Configuration — Single Stage Reference

Helical planetary (spur input)
98%
Helical planetary (bevel input)
97%
Spur planetary (standard)
96%
Right-angle (bevel-helical)
95%
Worm gear (comparison)
70–85%

Values at rated load and speed, synthetic gear oil, ambient temperature 20°C. Multi-stage: multiply per stage. 3-stage helical: 0.98³ = 94.1%.

A catalogue value of 97% efficiency means that for every 100 watts of input power from the motor, 97 watts reaches the output shaft as mechanical work, and 3 watts is dissipated as heat within the gearbox. This sounds trivially small — but consider a 200 kW motor driving a heavy conveyor through a 3-stage planetary gearbox at 94% combined efficiency: 12 kW is being dissipated as heat continuously. Over an 8,000-hour operating year, that is 96,000 kWh of energy wasted — a significant figure in energy cost terms for any industrial operation.

This is why planetary gearbox transmission efficiency matters beyond simple engineering curiosity: it directly affects motor selection (a less efficient gearbox requires a larger motor to deliver the same output power), operating energy cost (a 2% efficiency improvement on a 200 kW application saves approximately 3,500 kWh per year), and housing temperature (each percentage point of lost efficiency adds approximately 0.5–1.5°C to the housing temperature, which accumulates to a meaningful impact on gear oil life).

Where the Power Loss Actually Occurs — The 4 Loss Mechanisms

Gear Mesh Friction

~50–60% of total loss

The primary power loss mechanism in any gear system. As gear teeth engage and disengage, the sliding contact between the tooth flanks generates friction. In a planetary gearbox, each planet gear has two mesh contacts (sun and ring) active simultaneously, and there are typically 3–4 planet gears per stage — all meshing contacts run simultaneously. Helical teeth reduce this loss compared to spur teeth by approximately 0.5–1.0% per stage due to the more gradual load application as teeth engage across the tooth width.

Bearing Friction

~20–30% of total loss

Rolling element bearings in a planetary gearbox — planet carrier needle rollers, input and output shaft bearings — all have a friction torque that increases with applied radial load. At full rated torque, the combined bearing friction represents approximately 0.5–0.8% of the total input power. Needle roller bearings (used on planet pins) have lower friction than ball bearings at the same radial load, which is why planetary gearboxes consistently use needle rollers on the planet pins rather than the more common ball bearing type.

Churning Loss (Windage)

~10–20% of total loss

Churning loss is caused by the rotating gear and carrier elements displacing oil — essentially stirring the gear oil inside the housing. This loss increases sharply with speed and with the amount of oil in the housing. At high input speeds (above 2,000 RPM), churning loss can represent a larger fraction of total power loss than gear mesh friction itself. Maintaining oil level at the specified mark — not overfilling — directly reduces churning loss. An overfilled planetary gearbox can have 1–3% lower efficiency than correctly filled due to churning alone.

Seal Friction

~5–10% of total loss

Lip seals at the input and output shaft positions drag against the rotating shaft surface with a friction torque that is relatively constant regardless of load — it is primarily a function of seal interference, spring force, and shaft surface finish. This means that at low load, seal friction represents a disproportionately high fraction of total loss, and at very low loads, a gearbox can show apparent efficiency of only 80–85% — not because the gearbox is inefficient, but because the seal friction is a fixed loss that dominates at low torque inputs.

5 Ways to Improve Planetary Gearbox Efficiency in Service

These improvements can be applied to any existing installation and collectively can recover 1–2% of total system efficiency loss due to suboptimal operating conditions:

  • Switch to synthetic PAO gear oil — synthetic lubricants have lower viscosity at operating temperature than equivalent mineral oil grades, reducing both churning loss and gear mesh friction. A switch from SAE 80W-90 mineral to 75W-90 synthetic typically recovers 0.5–1.0% system efficiency at rated load.
  • Fill to the correct oil level — not above — an overfilled gearbox increases churning loss. Verify the oil level with the gearbox at operating orientation with a cold housing before starting.
  • Maintain correct operating temperature range — efficiency is highest when oil viscosity is in the designed operating range. A housing below 40°C (oil too thick) or above 80°C (oil too thin) both result in efficiency reduction. Insulating a cold gearbox in sub-zero climates can meaningfully improve cold-start efficiency.
  • Verify shaft alignment — misalignment adds a cyclic bending load to the input shaft that increases bearing friction torque per revolution. Correcting misalignment recovers the bearing friction component of that bending load directly as output torque.
  • Select the correct number of reduction stages — fewer stages means fewer mesh losses. If an application can be served by a 2-stage planetary instead of a 3-stage unit, the 2-stage unit will be approximately 2% more efficient. Our inline planetary gearbox series is available in 1, 2, and 3-stage configurations across all frame sizes — select the minimum stages that achieve the required ratio.

For gear oil selection by viscosity grade and temperature range, see our gear oil selection guide, which covers the correct specification for both mineral and synthetic lubricants across all operating temperature ranges.

Efficiency-Optimised Planetary Gearbox Selection — Motor Sizing Support Included

Provide your required output torque, ratio, duty cycle, and motor power. We calculate the correct frame, number of stages, and minimum motor size accounting for actual gearbox efficiency — and return a quotation with efficiency documentation within 24 hours. MOQ 1 unit.

Get an Efficiency-Documented Quote →

📧 [email protected] · Canada Planetary Gear Drive Co., Ltd · ISO 9001:2015

Related Searches

planetary gearbox efficiency · planetary gearbox power loss calculation · planetary gearbox heat generation · how efficient is a planetary gearbox · improving planetary gearbox efficiency

Efficiency vs. Reduction Ratio — How Multi-Stage Reductions Affect Total System Efficiency

The most common efficiency specification error in planetary gearbox selection is assuming that the catalogue efficiency applies to the complete reduction ratio, regardless of the number of stages required to achieve it. It does not. The catalogue efficiency figure is a per-stage value. Total efficiency is the product of all stage efficiencies. A 3-stage planetary gearbox with 97% efficiency per stage has a total efficiency of 0.97³ = 91.3% — not 97%.

This distinction matters most when a high overall gear ratio is required. Achieving a ratio of 512:1 requires different numbers of stages depending on the per-stage ratio: a 3-stage unit with 8:1 per stage achieves 512:1 at 91.3% efficiency; a 2-stage unit at 22.6:1 per stage achieves the same ratio at 94.1% but may not be physically achievable in a compact housing. In applications where motor energy cost is significant — continuous industrial processes, remotely powered installations, solar-powered systems — the efficiency difference between a 2-stage and 3-stage design for the same ratio should be explicitly evaluated as an energy cost component of the total ownership cost.

The relationship between ratio and stage count also affects heat generation. A 3-stage 512:1 unit dissipates 8.7% of input power as heat — on a 100 kW motor, that is 8.7 kW of continuous heat generation inside the gearbox housing. A 2-stage unit at the same ratio dissipates 5.9 kW — a 2.8 kW difference. In enclosed machine rooms or in applications where the gearbox is inside a thermally sealed enclosure, this heat generation difference meaningfully affects the ambient temperature around the gearbox and the rate of oil degradation. Always calculate the heat generation in watts — not just the efficiency percentage — when assessing gearbox suitability for confined or heated installation environments.

Our inline planetary gearbox series is available in 1, 2, and 3-stage configurations across 16 frame sizes, allowing the minimum number of stages to be selected for any ratio requirement. This directly maximises system efficiency and minimises heat generation. We provide an efficiency certificate with each unit and include heat dissipation calculation in the technical quotation for continuous-duty applications.
