Product Overview
What Is the E Series Planetary Gearbox — and What Role Does It Fill?
The E series planetary gearbox is a compact, medium-power planetary gear unit engineered for industrial applications where high torque output is needed within a tightly constrained envelope. It covers rated torques from 1,480 Nm (E10) to 36,600 Nm (E260) — the mid-range between light-duty precision gearboxes and the heavy industrial S and 311 series units.
The series is built around a modular architecture developed over decades of planetary gear design iteration. Modular construction means different input configurations (hydraulic motors, IEC electric, NEMA electric, solid shaft), output shaft types, and mounting arrangements are assembled from a standardised component set — reducing lead time and cost on non-standard configurations compared with a purpose-engineered unit.
This unit is a direct-fit replacement for Brevini Riduttori E series models including E10, E16, E25, E30, E50, E80, E120, E160, and E260 — covering all EM, ED, ET, EQ, and EC sub-series designations. All installation dimensions are fully interchangeable.
Specifications
E Series — Frame Sizes, Torque & Key Parameters
Rated & Peak Torque by Frame Size
| Frame Size | Rated Torque at 10,000h (Nm) | Peak Torque (Nm) |
|---|---|---|
| E10 | 1,480 | 2,200 |
| E16 | 2,365 | 3,400 |
| E25 | 3,970 | 5,200 |
| E30 | 4,880 | 6,500 |
| E50 | 6,300 | 7,500 |
| E80 | 11,200 | 12,500 |
| E120 | 16,800 | 20,000 |
| E160 | 24,200 | 34,000 |
| E260 | 36,600 | 45,000 |
Key Configuration Parameters
| Parameter | Value / Details |
|---|---|
| Rated Torque Range | 1,480 – 36,600 Nm (9 frame sizes) |
| Peak Torque Range | 2,200 – 45,000 Nm |
| Application Category | Medium power industrial planetary gear unit |
| Design Architecture | Modular — standard components cover all sub-series (EM, ED, ET, EQ, EC) configurations |
| Compatible Sub-Series | EM (inline) · ED (right angle) · ET (track drive) · EQ (winch/slewing) · EC (combined) |
| Quality Test | 100% load-tested before shipment — signed test report included |
| Warranty | 12 months from shipment |
| MOQ | 1 unit — no minimum order |
| Shipping | Sea / Air / DHL · EXW, FOB, CFR, CIF · Jiangmen Port, China |
Key Features
Why Engineers Specify the E Series Planetary Gearbox
All points are specification-backed — no vague claims.
E10 through E260 share a common modular architecture. Switching between sizes requires no new input/output tooling — the same adaptor flanges, shaft types, and mounting patterns carry across the range.
Designed specifically for applications requiring high torque in limited space. The planetary architecture distributes load across multiple planet gears simultaneously — achieving higher torque density per unit volume than equivalent helical or worm designs.
A single E series product line replaces five Brevini sub-series designations — inline planetary (EM), right angle (ED), track drive (ET), winch/slewing (EQ), and combined configurations (EC). One supplier relationship covers the entire E-series scope.
No-load run-in and full rated-torque bench test on every E series unit — not sampled, every unit. Signed test report included with shipment as standard. Units that fail the test do not leave the facility.
Non-standard input/output combinations built from standard components — without the cost or delay of purpose-engineered tooling. OEM private labelling and drawing-based custom specifications available.
All installation dimensions — mounting flange, output shaft, housing bolt pattern — match the original Brevini E series unit. No shimming, no adaptor fabrication, no rework. Swap time from arrival to machine back in service: typically 4–8 hours.
Interchangeable Models
Brevini Riduttori E Series — Full Interchangeable Model Reference
Our planetary gear units, wheel drive gearboxes, winch drive gearboxes, and track drive units are fully interchangeable with the following Brevini Riduttori model codes. All installation dimensions match for direct substitution.
| EM Series Inline Planetary | ED Series Right Angle | ET Series Track Drive | EQ Series Winch / Slewing | EC Series Combined (2) | EC Series Combined (3) | EC Series Combined (4) |
|---|---|---|---|---|---|---|
| EM1010 | ED2010 | ET3010 | EQ4010 | EC2010 | EC3010 | EC4010 |
| EM1020 | ED2020 | ET3020 | EQ4020 | EC2020 | EC3020 | EC4020 |
| EM1030 | ED2030 | ET3030 | EQ4030 | EC2030 | EC3030 | EC4030 |
| EC4040 | ED2040 | ET3040 | EQ4040 | EC2040 | EC3040 | EC4040 |
| EM1045 | ED2045 | ET3045 | EQ4045 | EC2045 | EC3045 | EC4045 |
| EM1046 | ED2046 | ET3046 | EQ4046 | EC2046 | EC3046 | EC4046 |
| EM1065 | ED2065 | ET3065 | EQ4065 | EC2065 | EC3065 | EC4065 |
| EM1067 | ED2067 | ET3067 | EQ4067 | EC2067 | EC3067 | EC4067 |
| EM1090 | ED2090 | ET3090 | EQ4090 | EC2090 | EC3090 | EC4090 |
| EM1091 | ED2091 | ET3091 | EQ4091 | EC2091 | EC3091 | EC4091 |
| EM1150 | ED2150 | ET3150 | EQ4150 | EC2150 | EC3150 | EC4150 |
| EM1155 | ED2155 | ET3155 | EQ4155 | EC2155 | EC3155 | EC4155 |
| EM1250 | ED2250 | ET3250 | EQ4250 | EC2250 | EC3250 | EC4250 |
| EM1255 | ED2255 | ET3255 | EQ4255 | EC2255 | EC3255 | EC4255 |
| EM1320 | ED2320 | ET3320 | EQ4320 | EC2320 | EC3320 | EC4320 |
We do not sell products from this brand; we are only using this brand for convenience in product selection and it does not involve any infringement.
Applications
Where the E Series Planetary Gearbox Is Deployed
The medium-power torque range of the E series planetary gearbox (1,480–36,600 Nm) sits between light precision servo drives and heavy crane or mining reducers — filling the largest segment of industrial and mobile equipment drive applications.
Conveyor drives, rotary mixer drives, and agitator drives in food, chemical, and manufacturing plants. The ET and EM sub-series configurations provide inline and 90° output arrangements to suit different machine layouts. IEC electric motor inputs are standard for fixed industrial applications.
The ET sub-series covers track drive applications for mini excavators, compact tracked platforms, and crawler carriers in the 1,480–11,200 Nm torque range. Hydraulic motor input is standard for mobile equipment. Fully interchangeable with Brevini ET track drive models.
The EQ sub-series handles rope drum winches, cable pulls, and slewing drive applications. Deployed in compact marine deck equipment, small cranes, and material handling winches where the E80–E260 frame sizes cover the required torque without oversizing the drive unit.
Harvester head drives, baler drives, and PTO implements in the 1,480–6,300 Nm range (E10–E50). The modular EC combined series accommodates both electric and hydraulic input types depending on the tractor's available power source.
Clarifier rake drives, thickener scraper arms, and sludge collector drives in municipal and industrial water treatment facilities. The E120–E260 frame sizes cover the 16,800–36,600 Nm range required for larger clarifier basin diameters.
FAQ
Frequently Asked Questions
Reviews
Verified Customer Reviews
"Our Brevini EM1090 failed on a clarifier drive mid-project. Sent the model code, received confirmation of the interchangeable replacement within a few hours. Unit arrived dimensionally identical — bolt pattern, shaft diameter, housing depth — all matched. Back in service in half a day. Test report was in the box; our ISO auditor was satisfied without any additional paperwork."
"I told my maintenance supervisor I was replacing a Brevini with a third-party unit. He responded with the exact face I expected — the one that says 'you are personally responsible for every bad thing that happens to this machine for the rest of its life.' The EP E50 arrived, fit perfectly, and has now run 1,800 hours on the conveyor drive. My supervisor has not mentioned it since. I consider that a standing ovation."
Why Choose Us
What Separates Our Factory from a Parts Catalogue

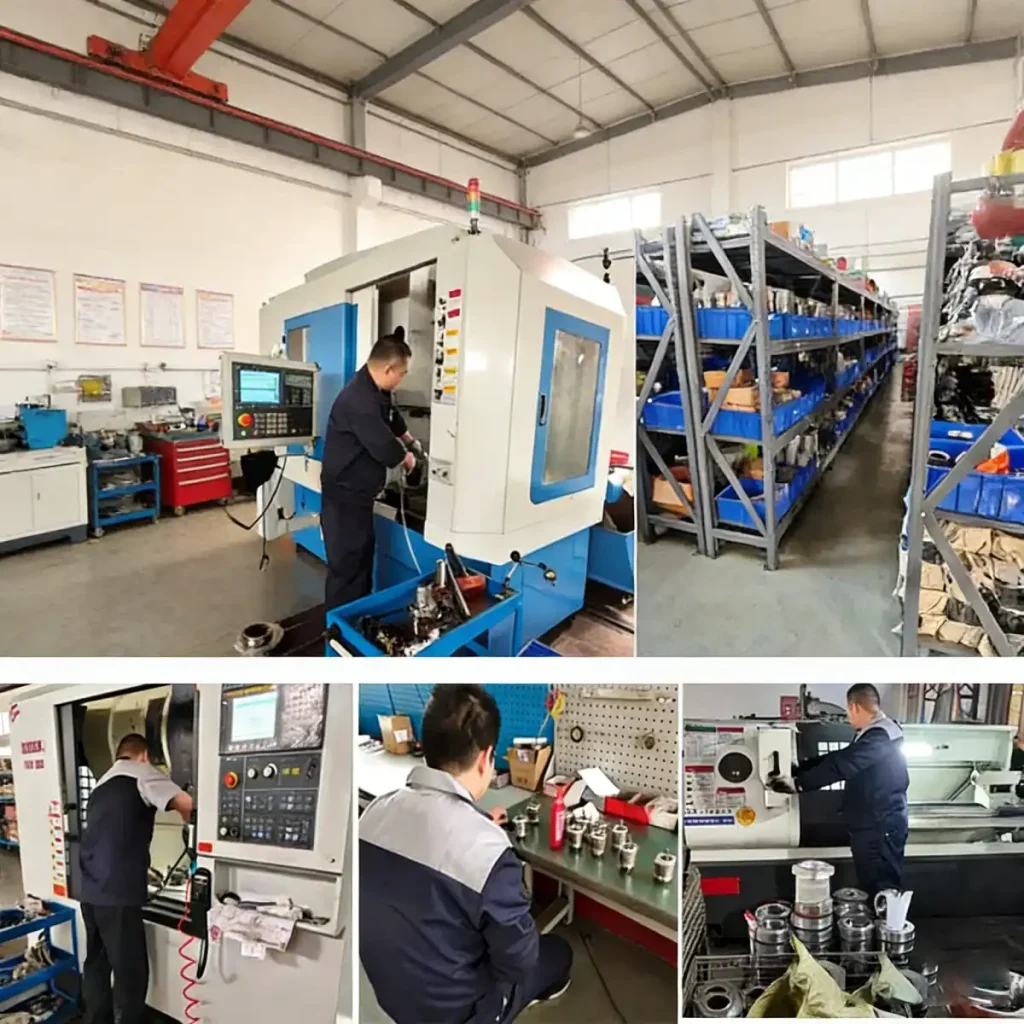

Our factory manufactures planetary gearboxes in-house: CNC housing machining, DIN/AGMA gear hobbing, heat treatment (case hardening and tempering), and full assembly in a controlled environment. The manufacturing process is within our own walls — not outsourced to a sub-tier supplier. This is what makes our 100% test commitment achievable and verifiable.
Our export engineers have mapped the E series against 105+ Brevini model codes in the EM, ED, ET, EQ, and EC range — plus Bonfiglioli, Bosch Rexroth, Comer, Reggiana, Rossi, and Zollern equivalents. When you send a competitor model code, we return a confirmed replacement specification within 4 hours. Not an estimate — a confirmed match backed by our dimensional drawings.
Certified quality management system covering incoming material, machining tolerances, gear mesh measurement, assembly verification, and outgoing documentation. CE and RoHS documentation available on request. Every E series unit ships with a signed test report as standard.
Equipment manufacturers building their own product lines can OEM private-label E series units with custom nameplates and documentation. Drawing-based custom configurations are built from standard components within the modular E series platform. Minimum quantities and lead times confirmed on enquiry.
Source Your E Series Planetary Gearbox — Quote in 24 Hours
Send the Brevini model code (EM / ED / ET / EQ / EC + number) from your existing unit — or specify frame size, torque requirement, and input/output configuration. We'll confirm the replacement specification, price, and lead time within 24 business hours.
✓ 100% Load-Tested · Test Report Included
✓ Sea / Air / DHL · EXW FOB CIF
✓ ISO 9001:2015 · CE · RoHS
✓ Custom & OEM Private Label Available
