Scissor Lift Planetary Gearbox: Self-Propelled AWP Drive Specification, Failure Modes, and Replacement Guide
The scissor lift planetary gearbox at each driven wheel of a self-propelled aerial work platform (AWP) must meet a unique combination of conflicting demands: compact enough to fit inside a standard wheel hub assembly (often ≤200mm outer diameter), torque-dense enough to move 2,000–5,000 kg of machine plus rated load at gradeability up to 35%, and sealed to survive year-round outdoor use including industrial pressure washing. This guide expands on specification, common failure modes, a step-by-step replacement procedure, and how to integrate complementary drivetrain components for the most widely deployed electric scissor lift platforms across JLG, Genie, Skyjack, and Haulotte.
AWP Drive Requirements — Four Factors That Separate Scissor Lift Gearboxes from Standard Wheel Drives
The self-propelled lift wheel drive gearbox must fit within the wheel hub assembly — typically housing OD of 120–200 mm and axial length of 90–150 mm. This severely constrains design compared to standard industrial drives. The solution is a 2–3 stage planetary arrangement with higher ratio per stage (up to 10:1 per stage) and using the wheel hub structure as the gearbox outer housing rather than a separate casting. Most AWP gearboxes use 5–6 planet gears per stage to spread load within the compact envelope.
Modern electric scissor lifts use brushless DC hub motors or separate BLDC motors driving the planetary gearbox. The motor’s speed-torque curve at low speed (2–5 km/h travel speed) defines the input condition — the gearbox ratio must step this down to wheel RPM while multiplying torque to produce gradeability (25–35% grade at rated load). For a typical 3,000 kg machine, wheel torque requirement is 1,800–2,500 Nm per hub, achieved with a 2-stage planetary of ratio ≈40:1.
The aerial work platform drive gearbox must integrate or directly accept a fail-safe parking brake. Scissor lifts are required by most rental and jobsite safety regulations to park securely on any slope within rated gradeability — the brake must hold the fully loaded platform without motor power. Most wheel drive gearboxes use a spring-applied, electrically-released multi-disc brake mounted at the motor interface end, with static holding torque of 1.5× the wheel’s dynamic torque rating.
Rental depots clean machines with 50–80 bar pressure washers directed at wheel hubs. IP55 seals fail within 12–18 months — IP65 (or IP66 with shaft labyrinth) is the minimum acceptable specification. Our gearboxes use double-lipped nitrile or FKM rotary shaft seals with a stainless steel excluder to prevent jet wash ingress, and breather valves with one-way membrane to equalize pressure without sucking water.
Common Scissor Lift Models — Gearbox Specification Reference & Cross-Brand Comparison

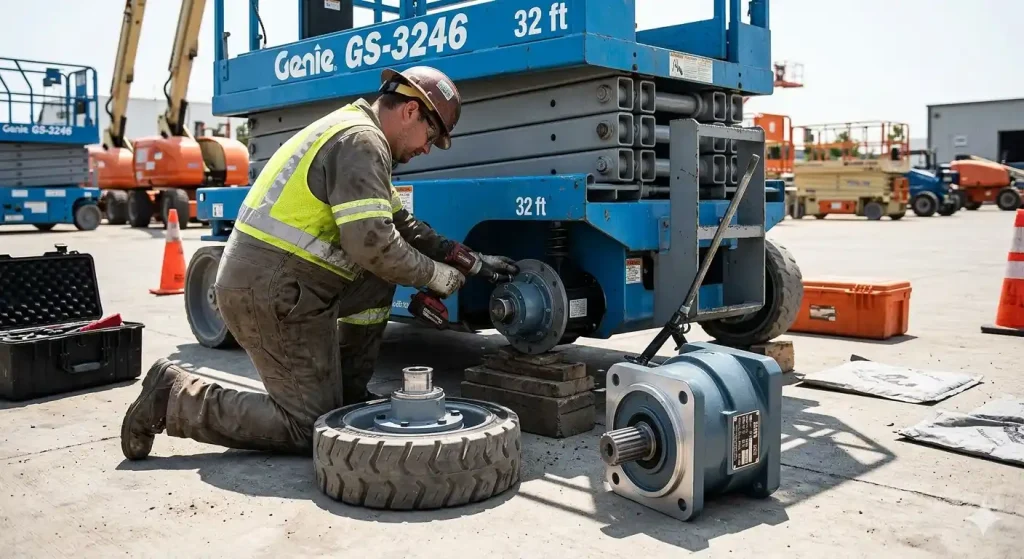

The four dominant scissor lift brands in North American and Australian rental markets — JLG, Genie, Skyjack, and Haulotte — all use compact wheel hub planetary drives on their electric self-propelled platforms. The JLG scissor lift gearbox on the 2646ES and 3246ES (most widely rented models) uses a 2-stage right-angle planetary in the 1,500–2,200 Nm range per wheel hub, with a 4-bolt motor flange pattern (102mm pilot diameter) accepting the platform’s BLDC motor directly. The Genie scissor lift drive reducer on GS-2632 and GS-3246 uses a similar design but with a 5-bolt flange and slightly larger housing (180mm OD vs JLG’s 165mm). Genie rates their 32-foot models at 30% gradeability vs JLG’s 25% for comparable machine weights — reflected in a higher-torque gearbox (2,200–2,800 Nm).
For all electric scissor lift and AWP wheel drive planetary replacement requirements, identify the correct replacement using three items: machine model and serial number, motor flange type (from motor housing), and existing gearbox nameplate. Providing all three confirms the exact dimensional spec — including wheel hub thread interface (M12x1.5, M14x1.5, or imperial 5/8″-18) — before ordering. Our right angle planetary gearbox catalogue covers torque and envelope requirements for most major scissor lift brands. The 300R right angle planetary gearbox covers 1,000–8,000 Nm range with compact housing dimensions required for scissor lift wheel hub installations and IP65 sealing as standard, plus an optional integrated negative brake interface.
Scissor Lift Wheel Drive Gearbox Maintenance — What Rental Fleet Managers Need to Know
Scissor lift wheel drive gearboxes in rental fleet service accumulate operating hours differently from construction equipment — a rental scissor lift may be used by 30–50 different operators across 200 jobsites in a year, with no consistency of maintenance practice or operating conditions. The most common failure mode is not bearing fatigue but seal failure from pressure washing during fleet cleaning. Standard rental depot cleaning procedures use 50–80 bar pressure washers directed at all machine surfaces including wheel hubs. IP55 seals — adequate for rain and splash exposure — fail within 12–18 months of regular pressure wash cleaning. IP65 is the minimum acceptable specification for rental fleet scissor lift drives.
Oil change intervals for scissor lift wheel drive gearboxes in rental fleet service should be set at 500 operating hours (not the 1,000-hour interval appropriate for single-operator construction machines), because varied duty cycle and pressure washing exposure accelerate oil contamination. At each 500-hour service, drain and inspect the oil — milky discolouration confirms seal weep and water ingress; metallic chips confirm bearing wear. Both conditions require immediate gearbox replacement rather than extended service. Use ISO VG 220 synthetic oil (PAO-based) for extended temperature range (-30°C to +60°C).
🔧 Quick diagnostic guide for AWP gearbox failure:
- Grinding noise during turn → Planetary bearing collapse (replace immediately)
- Intermittent drive, then no movement → Brake not releasing (check 24V supply or gearbox brake solenoid)
- Oil leak around wheel hub → Primary seal failure, IP55 rating not sufficient
- Reduced gradeability / stalls on slope → Motor torque fine, but gearbox efficiency drop (oil contamination or tooth wear)
Related Product Recommendations — Complete Your AWP Drivetrain Ecosystem
A reliable scissor lift wheel drive requires more than just a planetary gearbox. The gearbox interfaces directly with three critical components that determine overall system performance. We supply and recommend the following complementary products, all validated for compatibility with our right-angle planetary drives.
High-torque BLDC servo motors with integrated encoder feedback for precise speed control on self-propelled lifts. Our recommended motors feature 48V or 80V DC operation, 2.5–5 kW continuous power, and a NEMA 4/12 flange that directly bolts to the 300R gearbox input. Suitable for retrofitting older DC motor scissor lifts to higher efficiency.
Fail-safe spring-applied, electromagnetic-release brakes (24V DC) that mount between motor and gearbox. Holding torque from 35 Nm to 120 Nm, IP65 enclosure, and zero backlash. Direct replacement for OEM brake units on JLG 2646ES/3246ES and Genie GS series. Pre-wired with flying leads for quick integration.
Hardened steel wheel sprockets (for chain-driven lifts) and direct-mount hub flanges for gearbox output. Available in 6, 8, and 10-bolt patterns to match common tire rims. Splined bore or keyed options, with surface treatment for corrosion resistance. Custom bore sizes available for most scissor lift models.
✔ All three categories are stocked for fast shipment and can be included in your gearbox quote — ask for a bundled drivetrain kit (gearbox + motor + brake) for discounted pricing.
